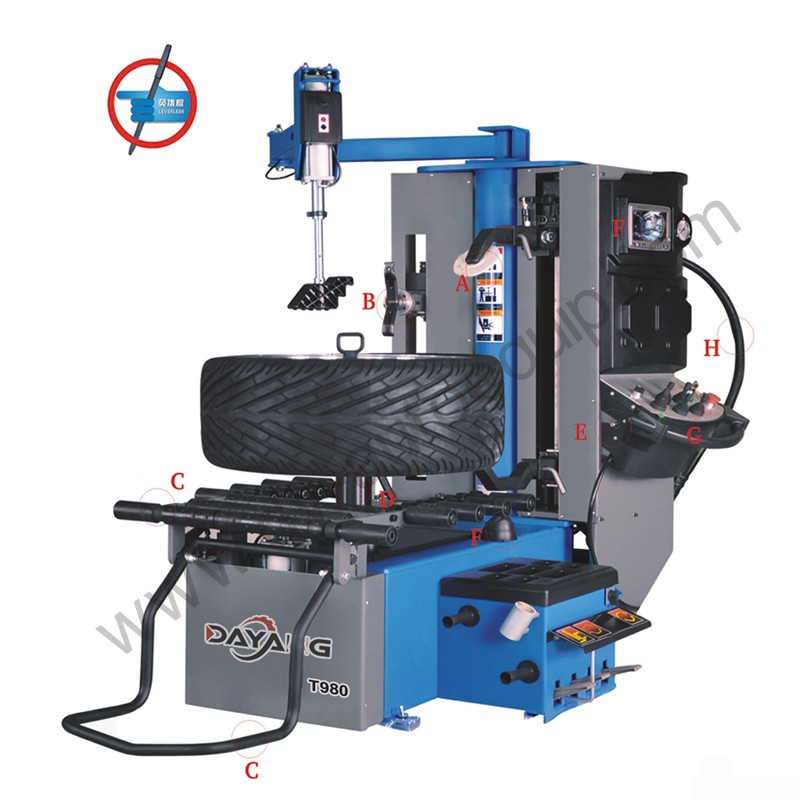

DY-T980 rim clamping insde 14'-30'tire changing machine

Specifications
Motor power---------------------0.85/1.1KW
Rim Clamping inside----------14-30"
Max. tire diameter--------------51(1300mm)
Max.tire width-------------------3"-13”(330mm)
Power supply-------------------110V-415V,50/60HZ
Rotating speed-----------------6r/min
operation pressure------------8-10bar
Bead breaker force-----------1400kg
N.W-------------------------------632kg
Package size------------------1680*1150*2000mm
5 units in one 20ft container

EMAIL



Features



1. Main shaft can move longitudinally with double speed.

2. Mounting head can be in center automatically.Bead breaker is centering with the center of main shaft, position can be adjustable.

3. Tire lifter can rotate the tire automatically. Monitor system is convenient to watch the working process.

4. Fast air inflating can be operated by two hands,more safe.

5. Stop on the condition of non-operation,saving electric power. Imported pump station.


Specifications



Motor power---------------------0.85/1.1KW

Rim Clamping inside----------14-30"

Max. tire diameter--------------51(1300mm)

Max.tire width-------------------3"-13”(330mm)

Power supply-------------------110V-415V,50/60HZ

Rotating speed-----------------6r/min

operation pressure------------8-10bar

Bead breaker force-----------1400kg

N.W-------------------------------632kg

Package size------------------1680*1150*2000mm

5 units in one 20ft container
