DY-T800 rim clamping inside 12'-21'

 Features

1. Semi-automatic tyre changer, be suitable to small car repair workshop.

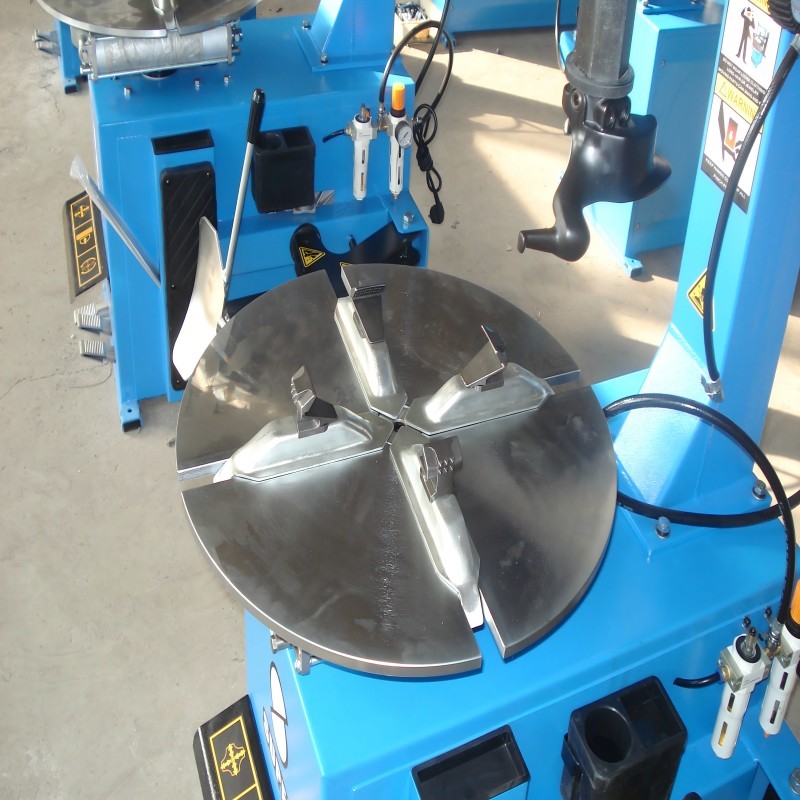

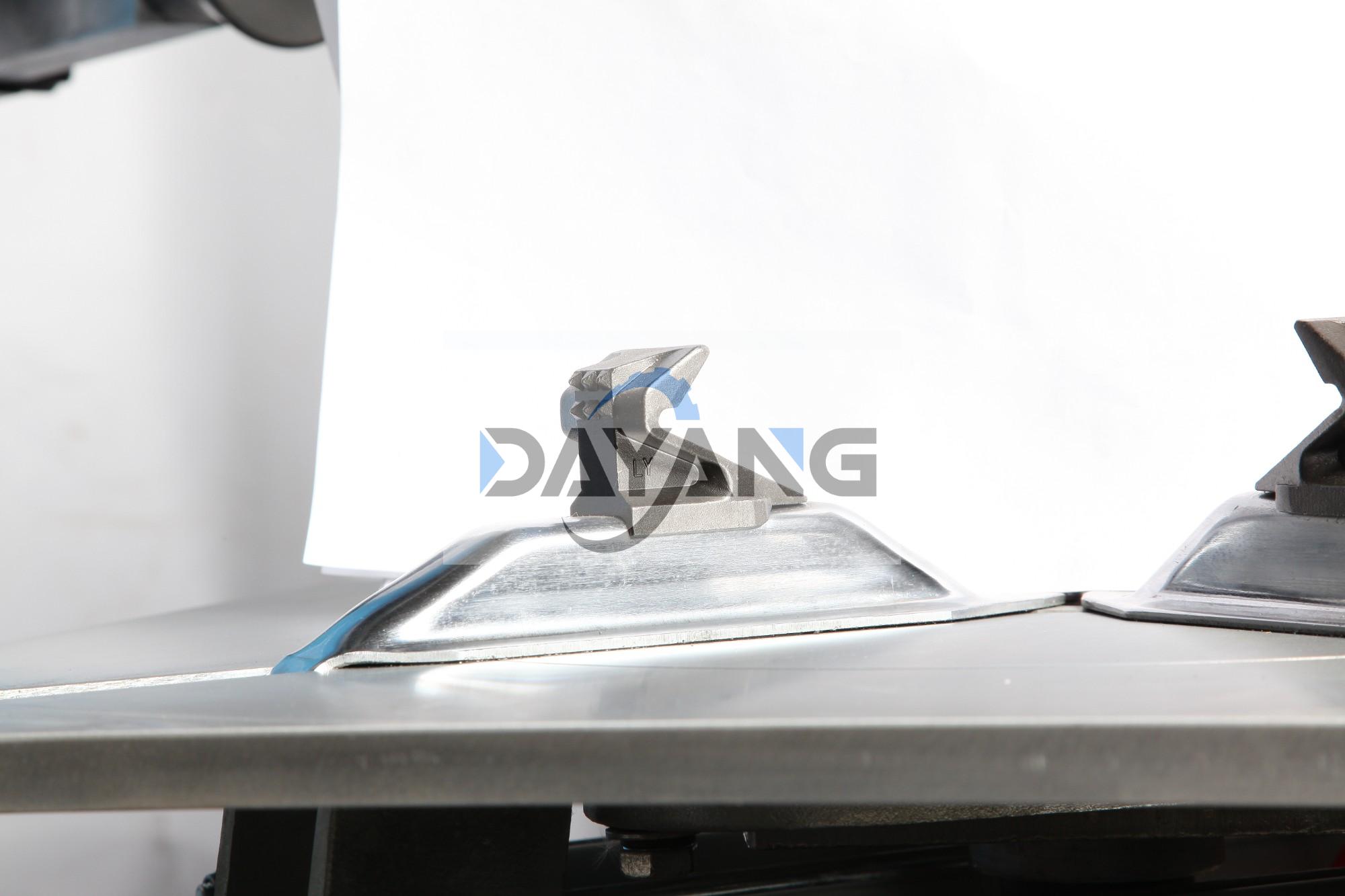

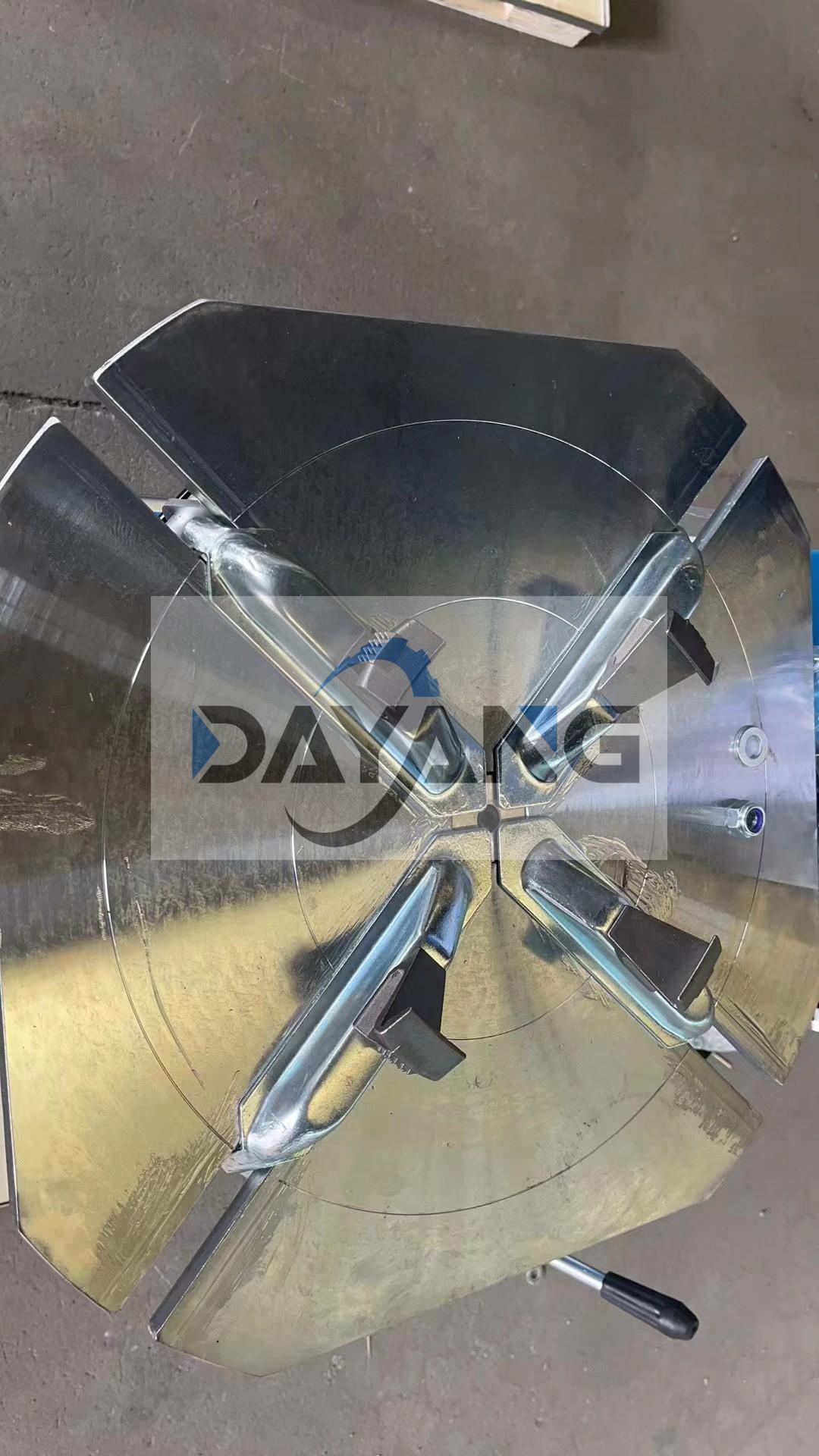

2. Clamp jaw made by cast steel, high strength, wear resistant and anti-rust.

3. Integrated demounting and mounting.

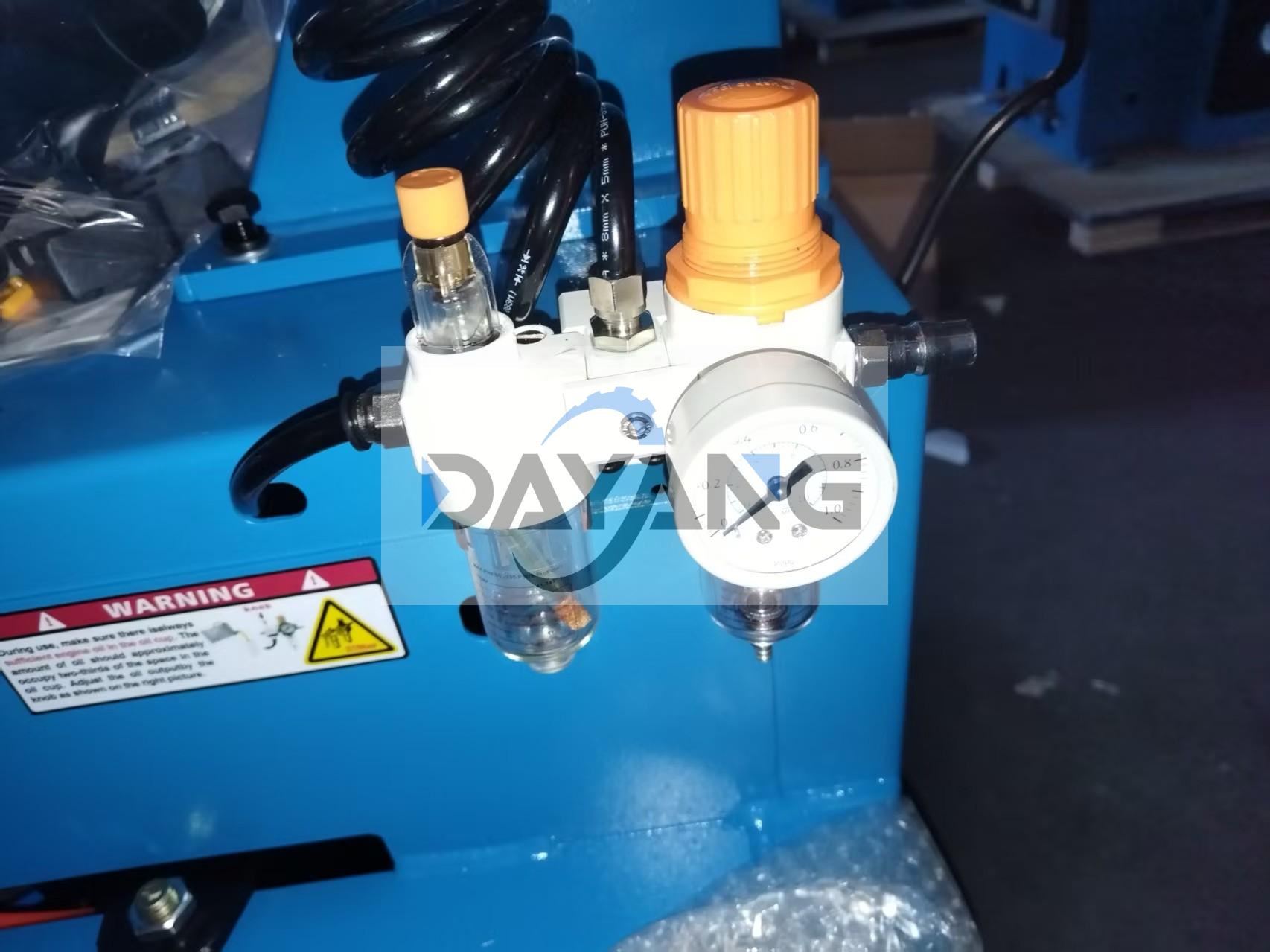

4. With double oil mist regulators, reduce corrosion of the cylinder by water.

5. Mounting head after high-frequency hardening, good wearing capacity.

Specifications

Motor power--------------- 0.75KW/1.1KW

Rim Clamping outside-----------10"-19"

Rim Clamping inside-------------12"-21"

Max. tire diameter-------------38” (960mm)

Max. tire width-----------------15”(380mm)

Rotating speed ---------------6r/min

Working pressure------------8-10bar

Bead breaker force----------2500kg

Power supply-----------------100V-415V,50/60HZ

N.W-----------------------------170kg

Package size----------------1010*755*900mm

34 units/20GP     72 units/40GP                 108 units/40HQ
