DY-T900 rim clamping inside 12'-21'

Specifications
Motor power-------------------------0.75KW/1.1 KW
Rim Clamping outside------------10"-19"
Rim Clamping inside--------------12"-21"
Max. tire diameter------------------38”(960mm)
Max. tire width----------------------15"(380mm)
Power supply-----------------------100V-415V,50/60HZ
Rotating speed----------------------6r/min
Working pressure-------------------8-10bar
Bead breaker force----------------2500kg
N.W-----------------------------------170kg
Package size-----------------------1010*755*900mm
34 units/20GP 72 units/40GP 108 units/40HQ

EMAIL



 Features

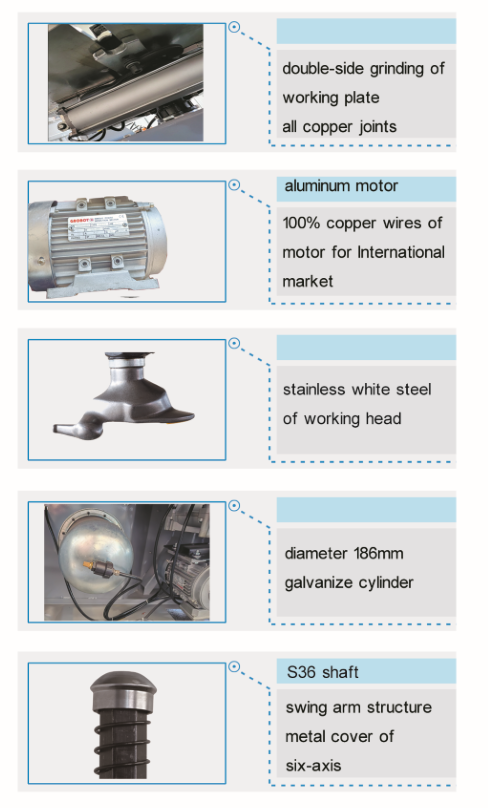

1. Thicker working plate, precision cast steel material claw, non-skid durable claw claw protection cover.

2. All nozzle joints are copper joints.

3.Metal six-square bar pressure cover, beautiful shape,strong and durable, no after-sales service.

4.Thicken the main body and breaker with quality protective cover.

5. Optional tire pressure rod.

6. Optional: clamping inside12"-24"




Specifications

Motor power-------------------------0.75KW/1.1 KW

Rim Clamping outside------------10"-19"

Rim Clamping inside--------------12"-21"

Max. tire diameter------------------38”(960mm)

Max. tire width----------------------15"(380mm)

Power supply------------------------100V-415V,50/60HZ

Rotating speed----------------------6r/min

Working pressure-------------------8-10bar

Bead breaker force----------------2500kg

N.W-----------------------------------170kg

Package size-----------------------1010*755*900mm

34 units/20GP  72 units/40GP  108 units/40HQ
