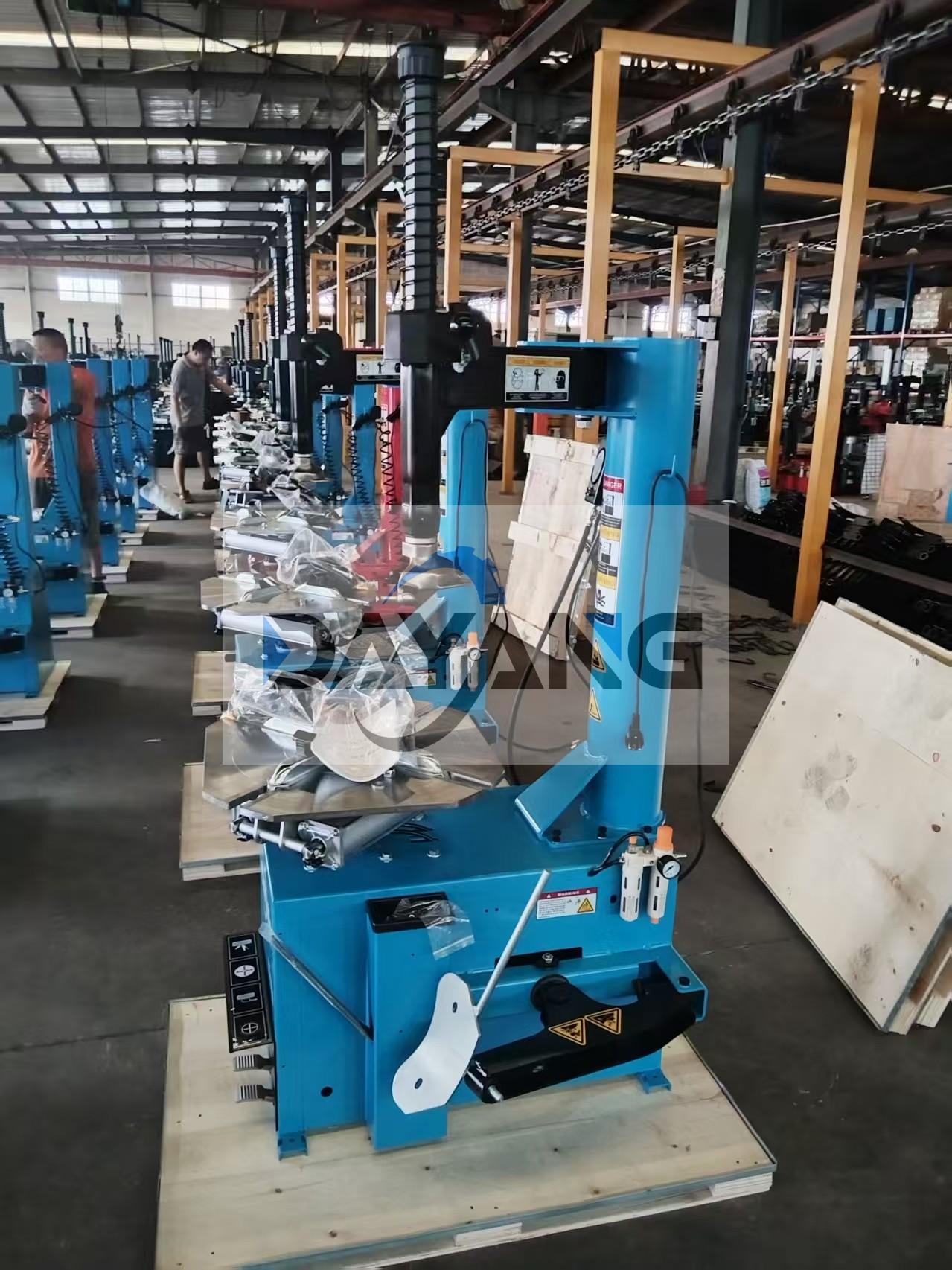

DY-T810 rim clamping inside 12'-24'

Specifications
Motor power----------------------- 0.75/1.1KW
Rim Clamping outside-----------10"-22"
Rim Clamping inside-------------12"-24"
Max. tire diameter---------------- 41”(1040mm)
Max. tire width--------------------- 15”(380mm)
Rotating speed ---------------------6r/min
Working pressure-------------------8-10bar
Bead breaker force-----------------2500kg
N.W-------------------------------------210KG
Package size-----------------------1300*800*900mm
Power supply----------------------100V-415V,50/60HZ
30 units/20GP 64 units/40GP

EMAIL

  Features

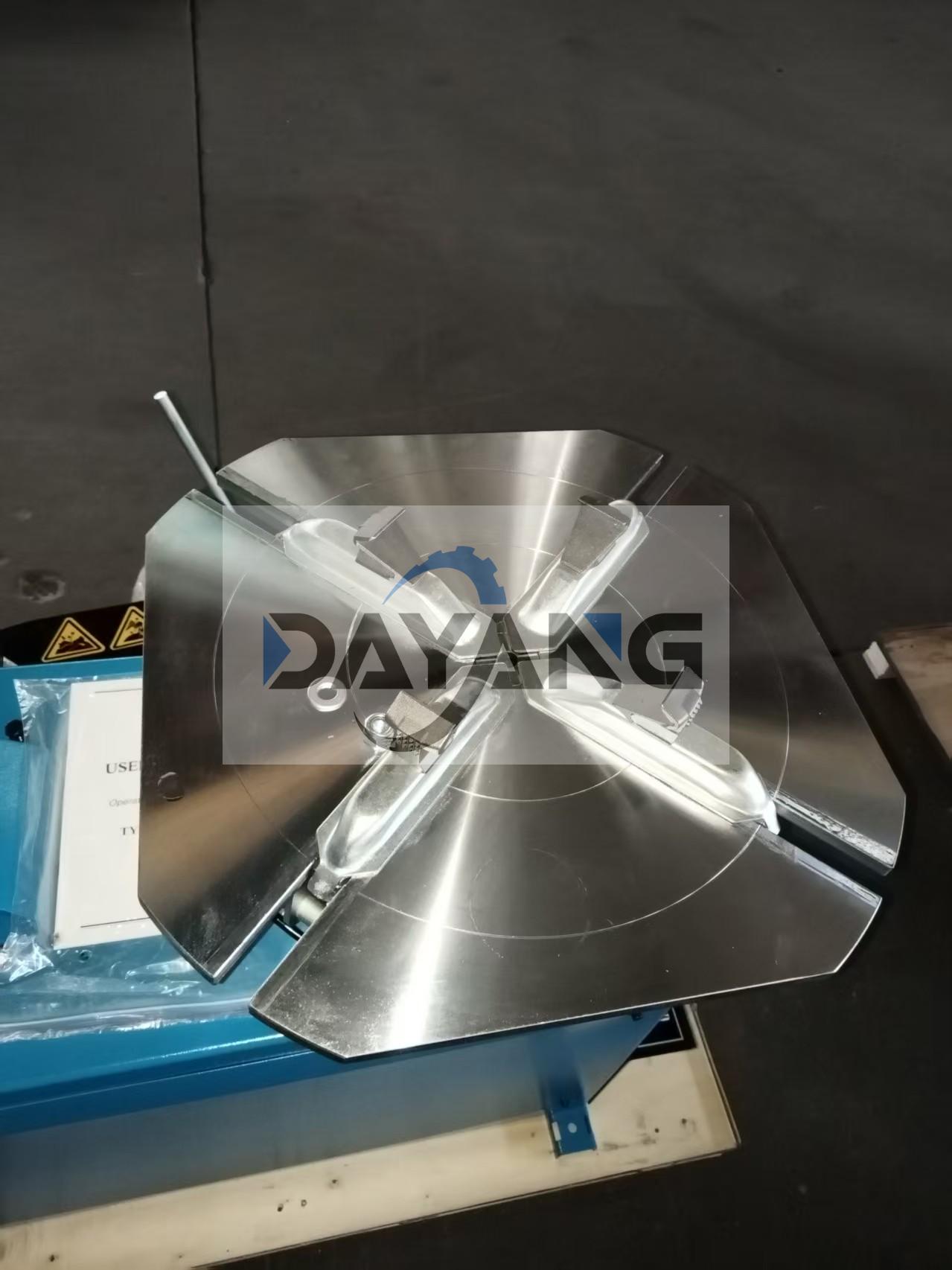

1. Clamping jaw made by cast steel, anti-abrasion and anti-rusting.

2. Integrated demounting and mounting.

3. Top locking and swinging arm structure.

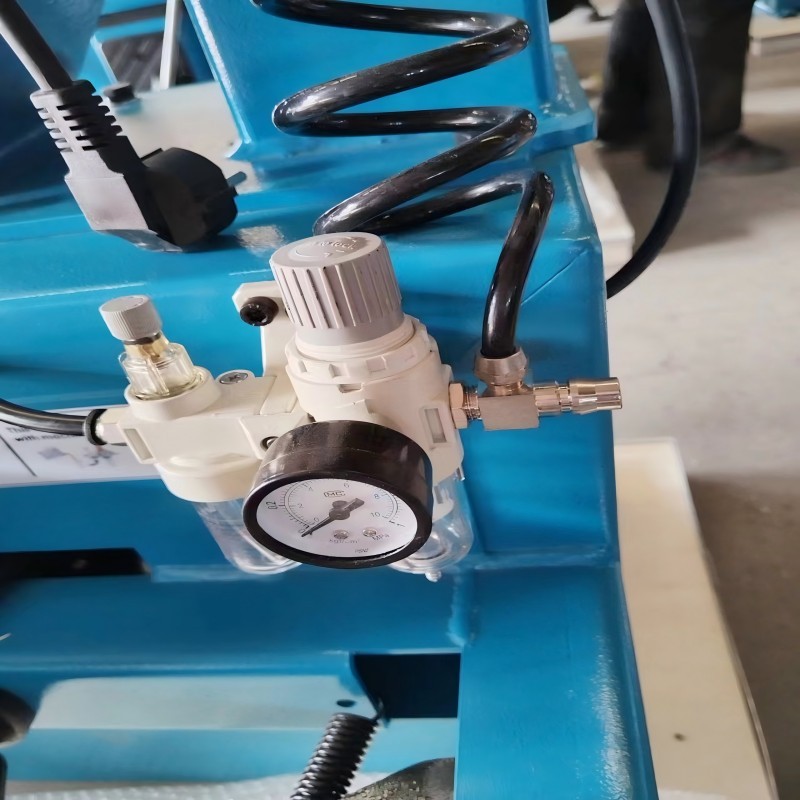

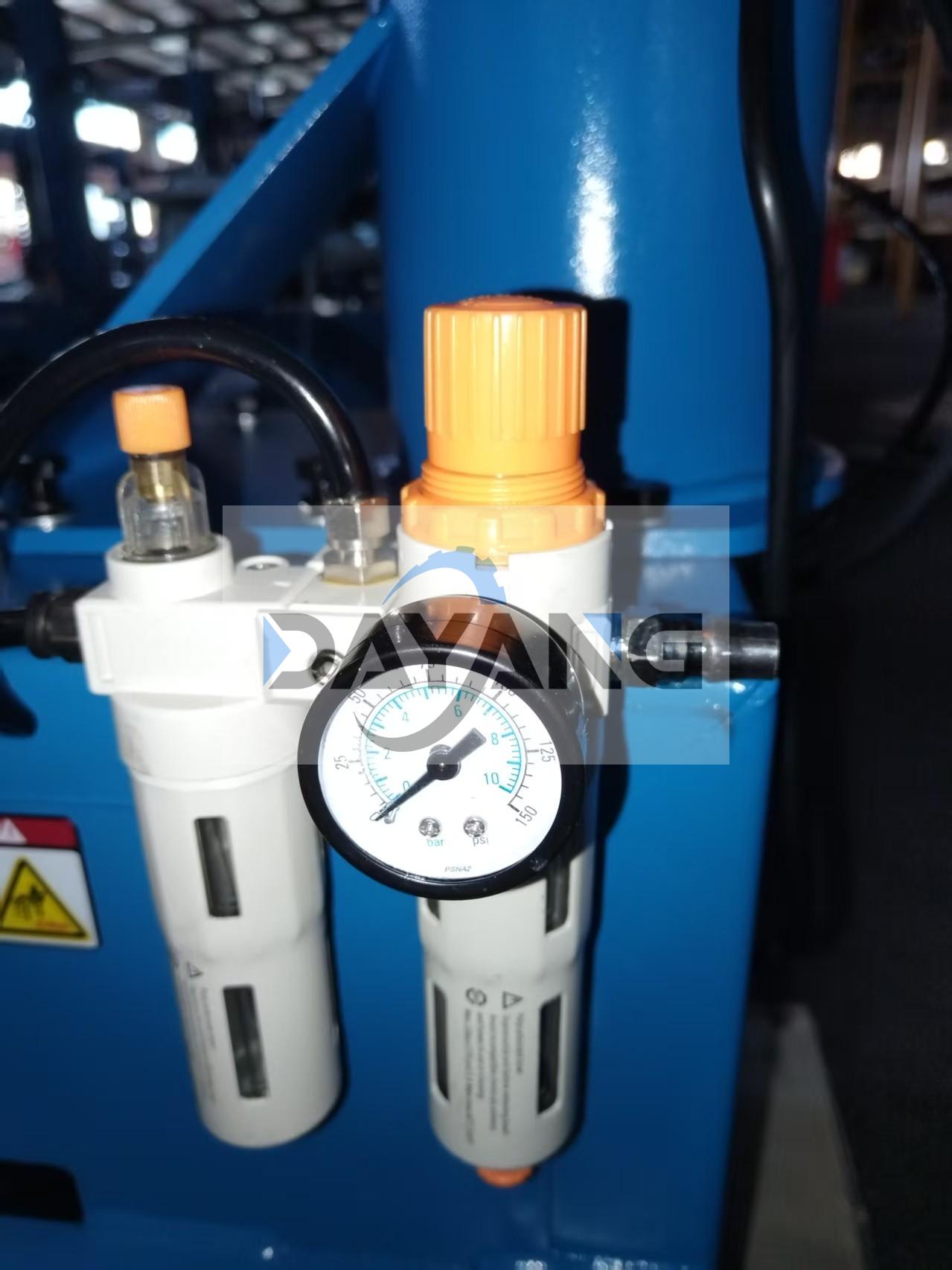

4. Built-in storage tank, fast air filling device by handheld, independent pedal.

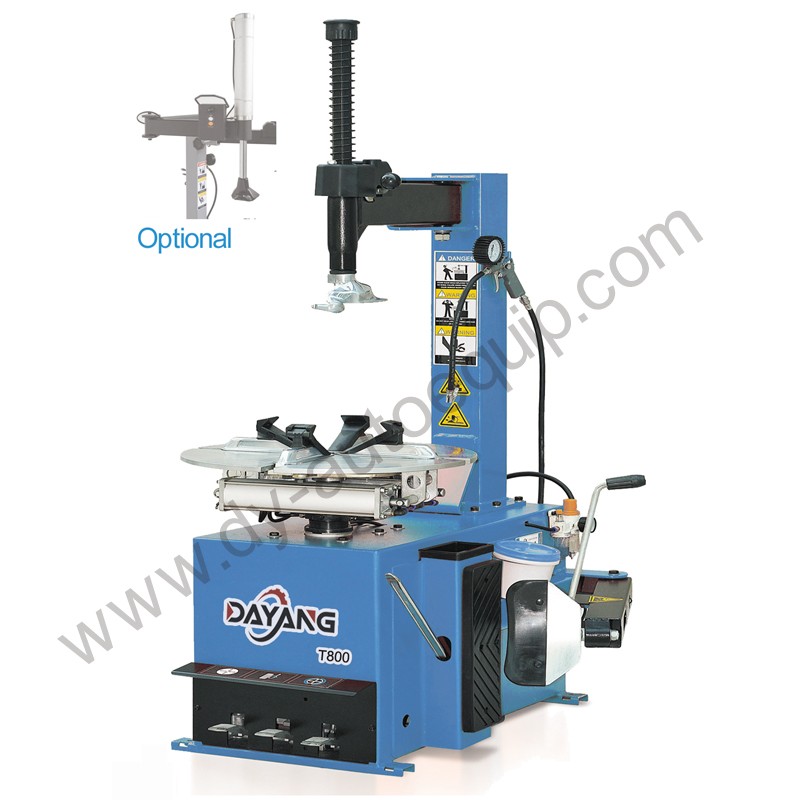

5. Reserved a hole for auxiliary mechanical arm, be convenient to add it.



Specifications

Motor power--------------------- 0.75/1.1KW

Rim Clamping outside-----------10"-22"

Rim Clamping inside-------------12"-24"

Max. tire diameter------------- 41”(1040mm)

Max. tire width----------------- 15”(380mm)

Rotating speed ---------------6r/min

Working pressure------------8-10bar

Bead breaker force----------2500kg

N.W-----------------------------210KG

Package size----------------1300*800*900mm

Power supply-----------------100V-415V,50/60HZ

30 units/20GP     64 units/40GP
