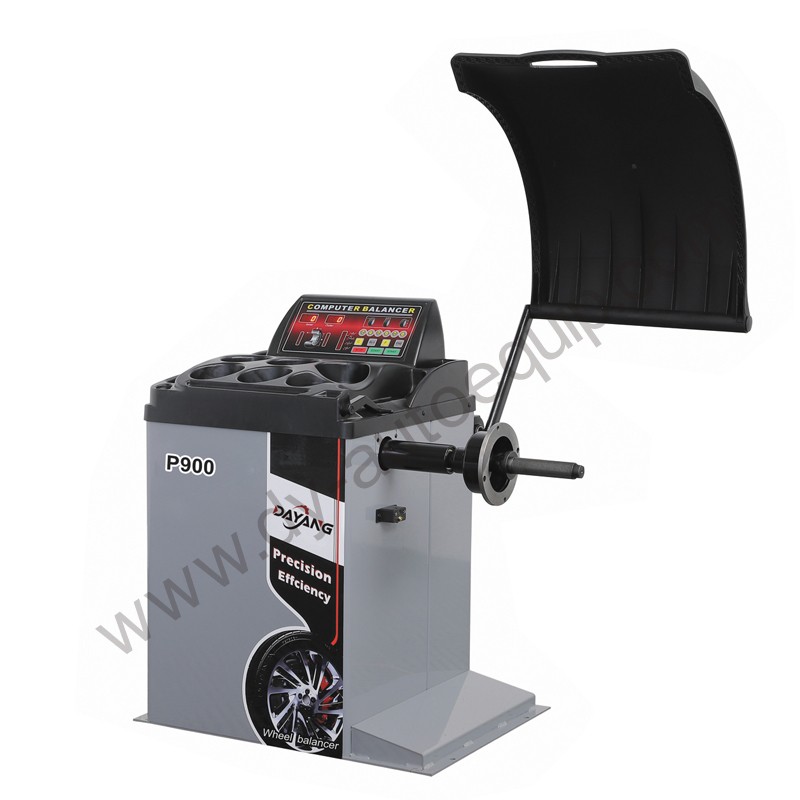

DY-P900 Rim diameter 10'-24' tire balancer machine

Specifications
Max. wheel weight--------------------65kg
Max. wheel diameter-----------------940mm
Rim diameter--------------------------10"-24"
Rim width-------------------------------4"-16
Balancing precision------------------1g
Balancing speed----------------------200rpm
Balancing cycle-----------------------7S
Motor power---------------------------0.25kw
Weight----------------------------------95KG
Power supply---------------------100-240V, 50Hz/60HZ
Packing Size---------------------- 1100*770*885mm
34 units/20GP 72 units/40GP

EMAIL



Features



1. It can realize automatic dynamic balance,static balance and aluminum alloy rim balance.

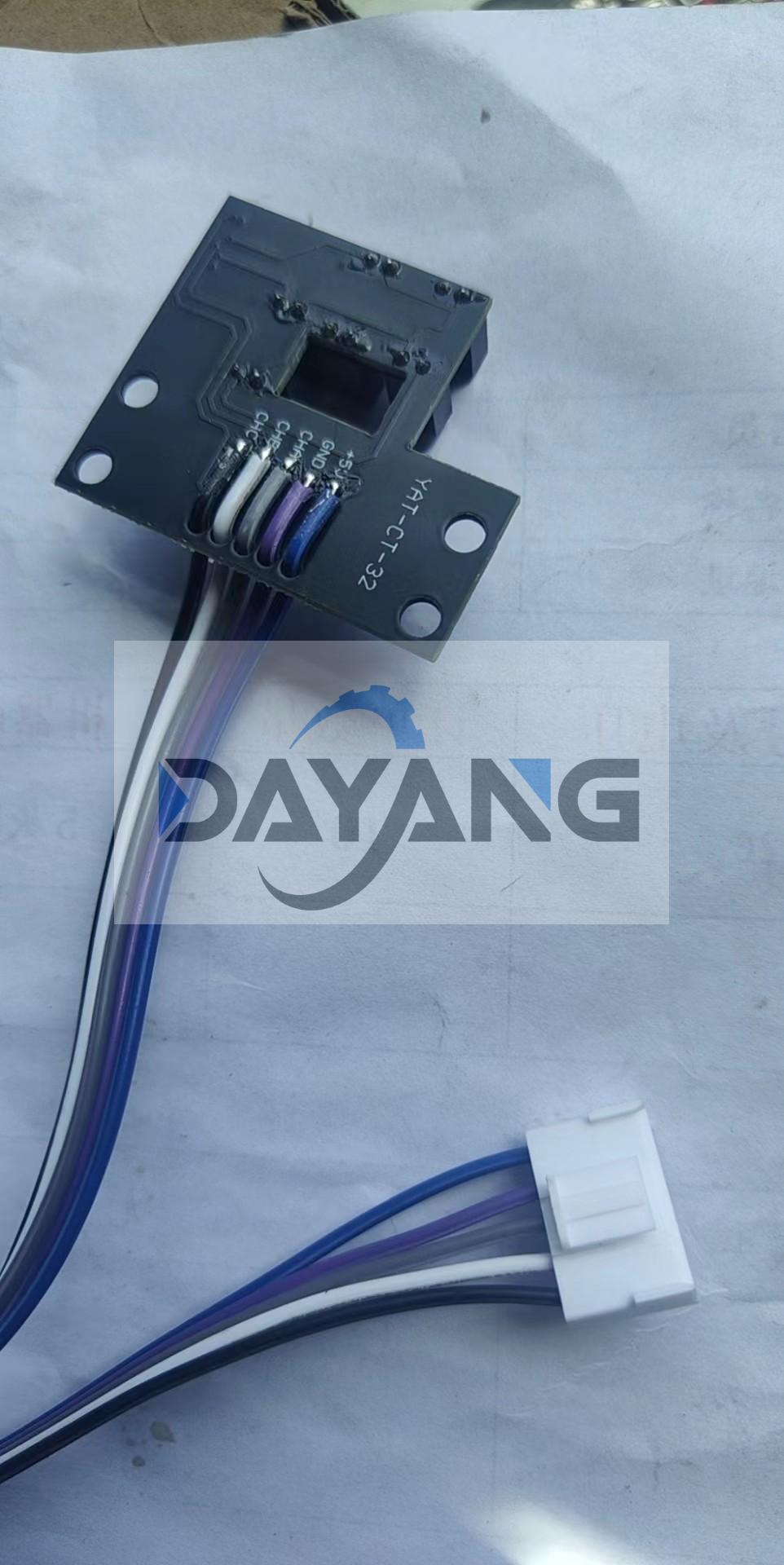

2.Adopt the pressure sensor, pressure data shows high precision.

3.The spindle of the wheel balancer, using 36 mm rotating shaft, and the accuracy is equally high for heavy tires.

4. OPT program, wheel vs rim optimization.


Specifications



Max. wheel weight--------------------65kg



Max. wheel diameter-----------------940mm



Rim diameter--------------------------10"-24"



Rim width-------------------------------4"-16"



Balancing precision------------------1g



Balancing speed----------------------200rpm



Balancing cycle-----------------------7S



Motor power---------------------------0.25kw



Weight----------------------------------95KG



Power supply-------------------------100-240V, 50Hz/60HZ



Packing Size------------------------- 1100*770*885mm

34 units/20GP    72 units/40GP
