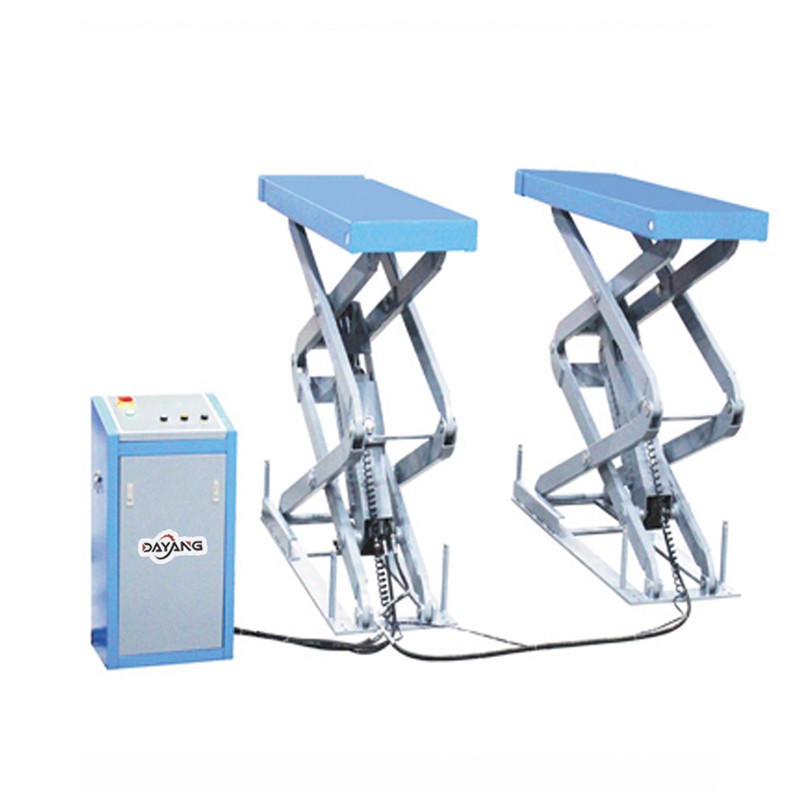

DY-QJY3.0S in ground mounted

 Features

1. In-ground mounted.

2. 2-cylinders structure,330mm in-ground installation.

3. Double safety device of hydraulic lock and mechanical double-tooth claws, more safe and reliable.

4.24V safety control system and 24V limited switch.

5. Platforms can extend for different long vehicles.

6. Adopt hydraulic failure and overload safety valve protection and throttle valve device, the machine won't drop fast if oil pipe is brusting.

Specification

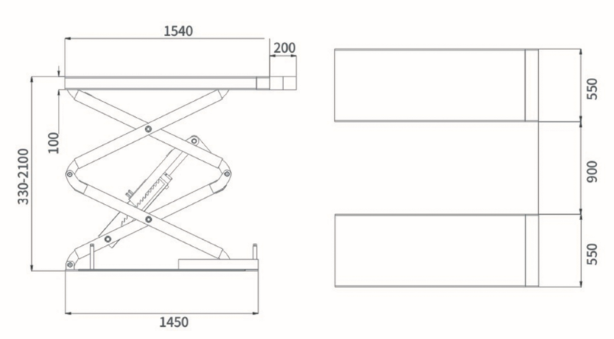

Model                                DY-QJY3.0S/DY-QJY3.5S

Lifting capacity---------------------3000kg /3500kg

Lifting height------------------------2100mm

Minimum height------------------- 330mm

Platform width--------------------- 550mm

Platform length--------------------1540~1740mm

Lifting time--------------------------50s / 55s

Motor power------------------------2.2kw

Power supply----------------------110V~415V

Air supply pressure-------------- 6-8bar

Oil pressure----------------------- 20Mpa

Weight ------------------------------780kg /820kg

18 units can be put into one 20ft container
