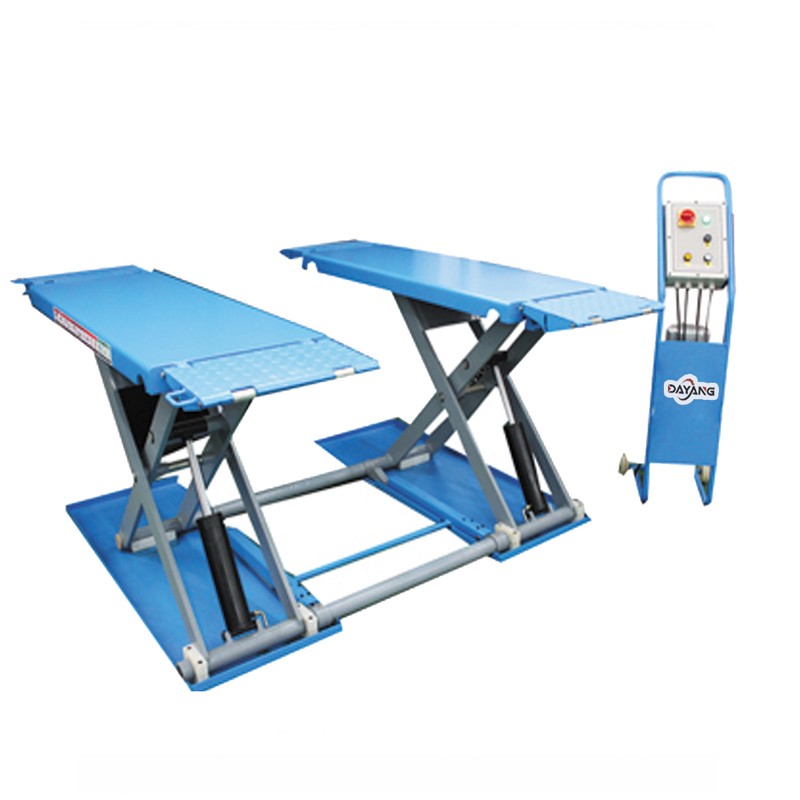

DY-QJY3.0SM mid rise scissor car lift

Specification:
Lifting capacity------------------- 3000kg/6600lbs
Lifting height---------------------- 1000mm
Minimum height------------------ 110mm
Platform width-------------------- 1760mm
Platform length------------------- 1400mm
Width between platform-------- 700mm
Lifting time--------------------------30s
Motor power---------------------- 2.2kw
Power supply-------------------- 220V/380V/415V

EMAIL



Features

1. Best choice for quick tyre replacement and simple repairing service.

2. Surface mounted or movable used, movable kits are standard.

3. Pneumatic release system decreases noise emitted during service work.

4. Mechanical safety lock to ensure the machine at different heights to get the absolute security.

5. Anti-skid platform effectively prevents sudden drop-down.

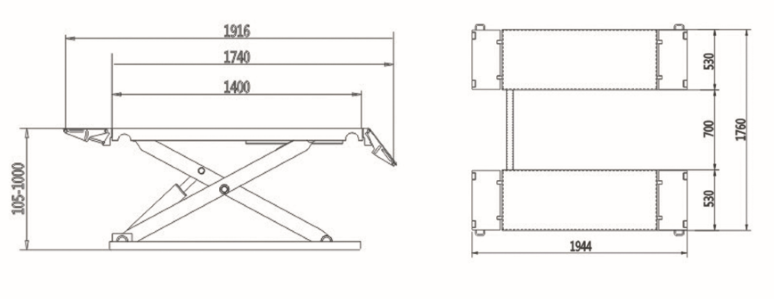

Specification

Lifting capacity-------------------3000kg/4000kg

Lifting height----------------------1000mm/1200mm

Minimum height------------------105mm

Platform width---------------------530mm

Platform length--------------------1400-1916mm

Width between platforms-------700mm

Lifting time--------------------------30s

Motor power-----------------------2.2kw

Air supply--------------------------6-8bar

Power supply---------------------110V~415V

Weight------------------------------530kg/550kg

30 units can be put into one 20ft container
