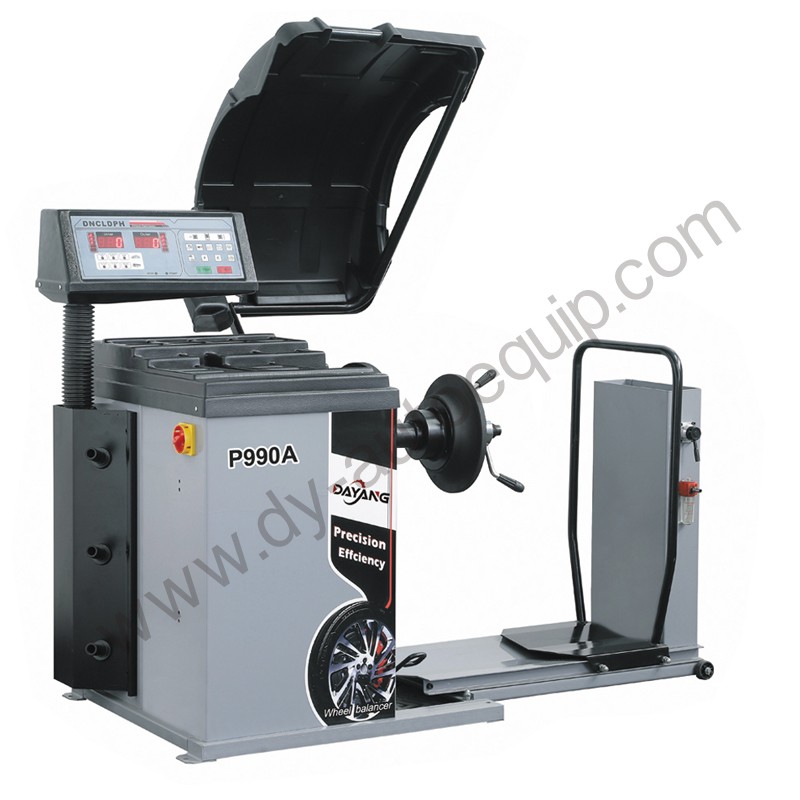

DY-P990A Rim diameter 10'-28' tire balancing machine

Specifications
Max. wheel weight---------- 150kg
Max. wheel diameter------- 1200mm
Rim diameter----------------- 10”-28”
Rim width--------------------- 3”-20”
Balancing precision---- ---10g car or 50g truck
Cycle time------------------7s car or 10s truck
Motor power----------------- 0.55kw
Power supply---------------- 100~240V,1PH,50/60Hz
Balancing speed-------------200rpm
Package sizes--------------1230X970X1210mm
18 units/20GP 42 units/40GP

EMAIL






Features



1. Electronic balancing machine with microprocessor for off-vehicle wheels of trucks, buses and vans.

2. Specially for balancing the large-sized wheels.

3. Piezoelectric ceramic sensor provide more accurate measurement.

4. Three phase electromagnetic braking motor.

5. Balancing time less than 10s .

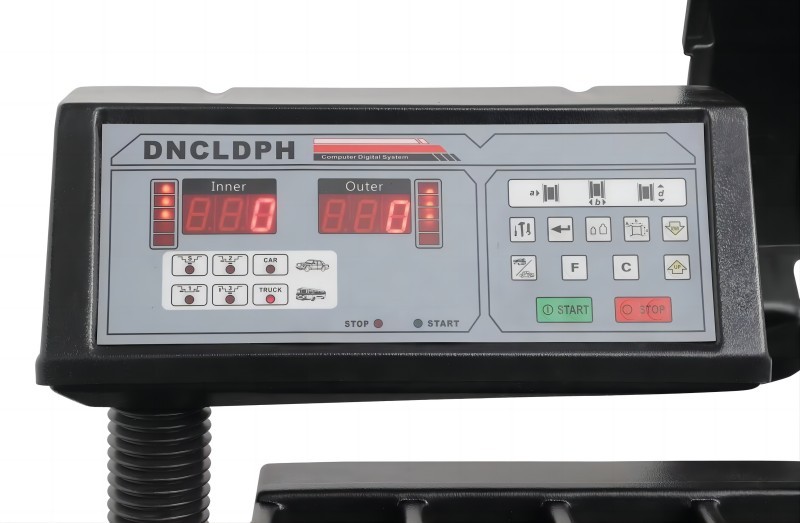

6. Unbalance value read-out from LED display.

7. Indication of unbalance in convertible grams and ounces.

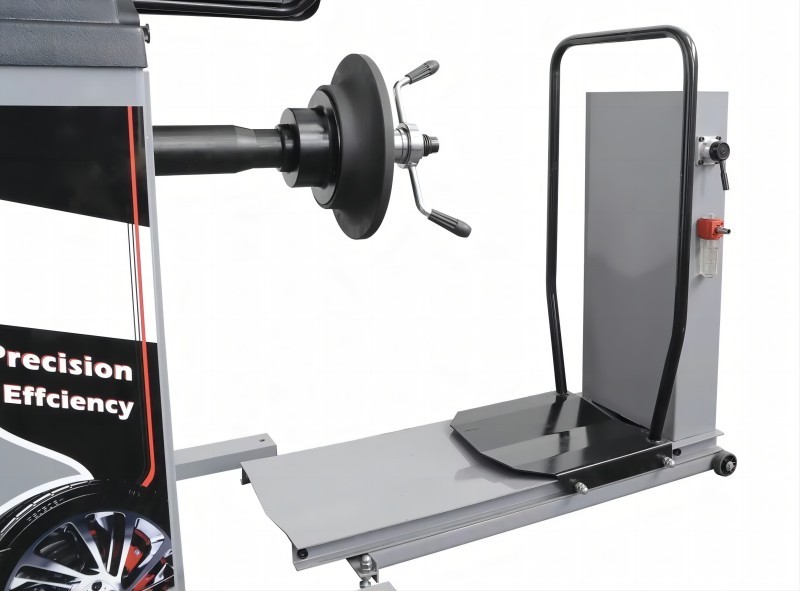

8. Pneumatic wheel lifting device.


 Specifications

Max. wheel weight---------- 150kg

Max. wheel diameter------- 1200mm

Rim diameter----------------- 10”-28”

Rim width--------------------- 3”-20”

Balancing precision---- ---10g  car or 50g  truck

Cycle time------------------7s  car or 10s  truck

Motor power----------------- 0.55kw

Power supply---------------- 100~240V,1PH,50/60Hz

Balancing speed-------------200rpm

Package sizes--------------1230X970X1210mm

18 units/20GP      42 units/40GP
