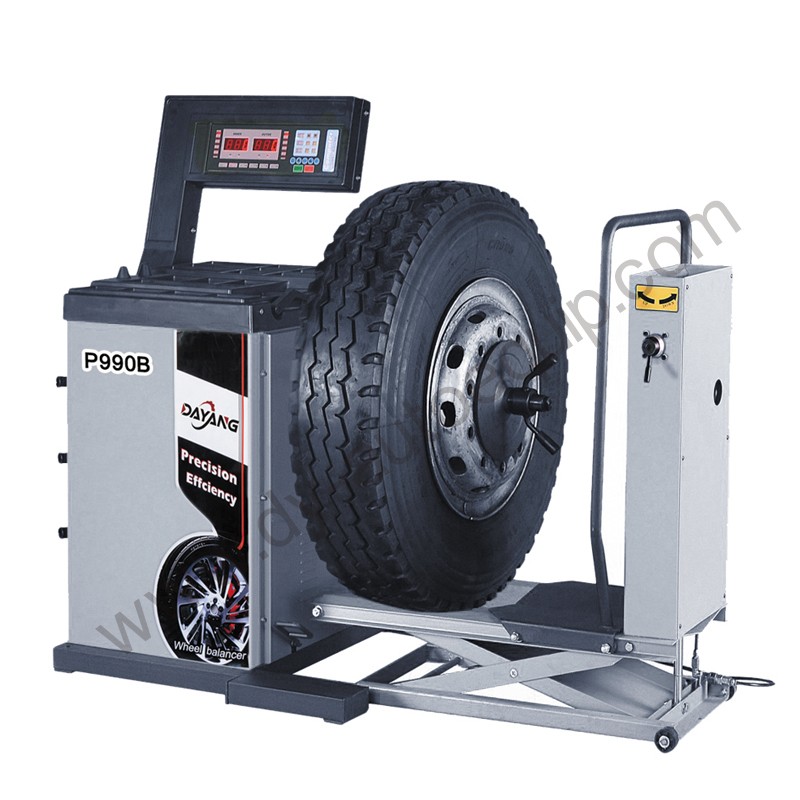

DY-P990B Rim diameter 10'-24' tire balancing machine

Specifications
Max. wheel weight---------- 200kg
Max. wheel diameter------- 1200mm
Rim diameter----------------- 10”-24”
Rim width--------------------- 1.5”-20”
Balancing precision-------- 10g car or 50g truck
Cycle time------------------7s car or 10s truck
Motor power----------------- 0.55kw
Power supply---------------- 110~240V,1PH,50/60Hz
Balancing speed-------------200rpm
Package sizes--------------1300X990X1130mm
18 units/20GP 42 units/40GP

EMAIL


Features



1. Electronic balancing machine with microprocessor for off-vehicle wheels of trucks, buses and vans.

2. Specially for balancing the large-sized wheels.

3. Piezoelectric ceramic sensor provide more accurate measurement.

4. Three phase electromagnetic braking motor.

5. Balancing time less than 10s .

6. Unbalance value read-out from LED display.

7. Indication of unbalance in convertible grams and ounces.

8. Pneumatic wheel lifting device.



Specifications

Max. wheel weight---------- 200kg

Max. wheel diameter------- 1200mm

Rim diameter----------------- 10”-24”

Rim width--------------------- 1.5”-20”

Balancing precision-------- 10g  car or 50g  truck

Cycle time------------------7s  car or 10s  truck

Motor power----------------- 0.55kw

Power supply---------------- 110~240V,1PH,50/60Hz

Balancing speed-------------200rpm

Package sizes--------------1300X990X1130mm

18 units/20GP     42 units/40GP
