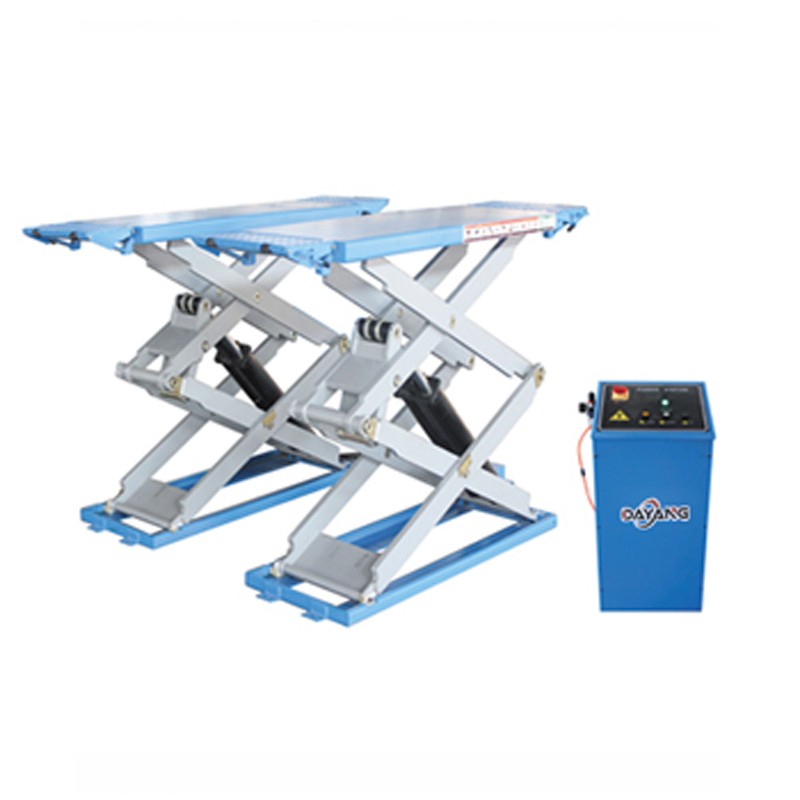

DY-QJY3.0ST on groud nstallation

Specifications
Model DY-QJY3.0ST/DY-QJY3.5ST
Lifting capacity---------------------3000kg/3500kg

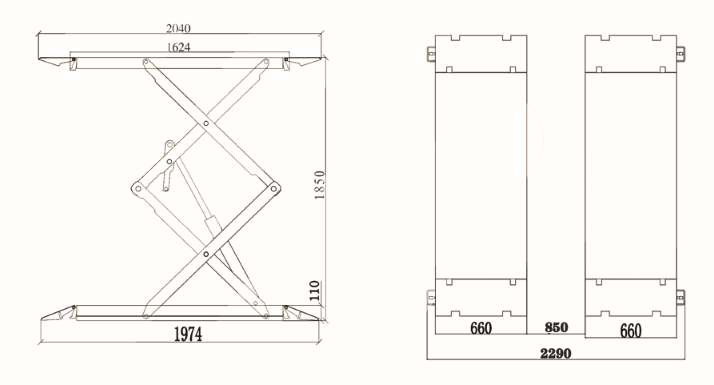

Max. lifting height-----------------1850mm
Min. lifting height------------------110mm
Lifting time------------------------- 50S
Length of platform----------------1450-2040mm
Width of platform----------------- 660mm
Motor power------------------------2.2kw
Power supply----------------------110V~415V
Air supply pressure --------------6-8bar
Oil pressure------------------------20Mpa
Weight-------------------------------870kg / 910kg
24 units can be put into one 20ft container

EMAIL

 Features

1. Ground surface mounted.

2. Super thin and min height 110mm, be convenient to lift low chassis.

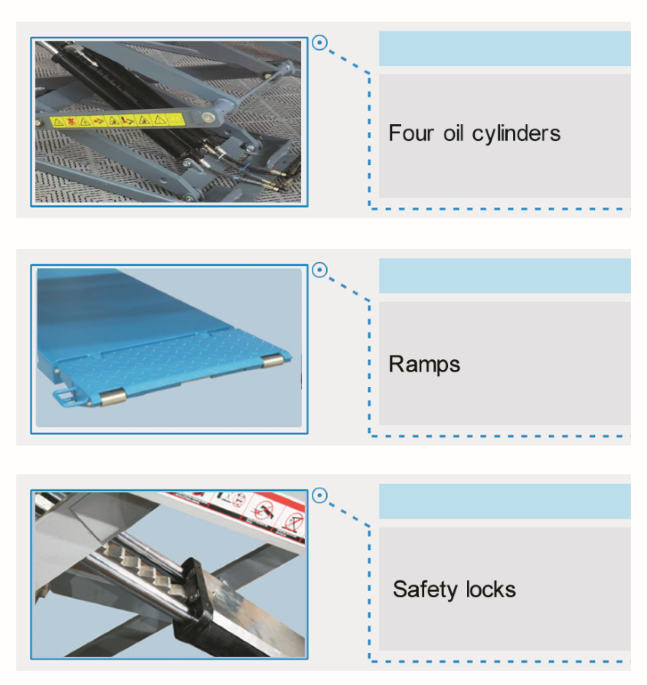

3. Four-cylinders interlocking structure and pneumatic double self locking system.

4. The hydraulic system adopt imports the module,lengthens the machine service life.

5. Platform extensions suit for different length vehicle.

6. 24V safety control system and 24V limit switch.




Specifications

Model                            DY-QJY3.0ST/DY-QJY3.5ST

Lifting capacity                       3000kg/3500kg

Max. lifting height                     1850mm

Min. lifting height                      110mm

Lifting time                                50S

Length of platform                  1450-2040mm

Width of platform                     660mm

Motor power                            2.2kw

Power supply                          110V~415V

Air supply pressure                  6-8bar

Oil pressure                             20Mpa

Weight                                870kg / 910kg

24 units can be put into one 20ft container
