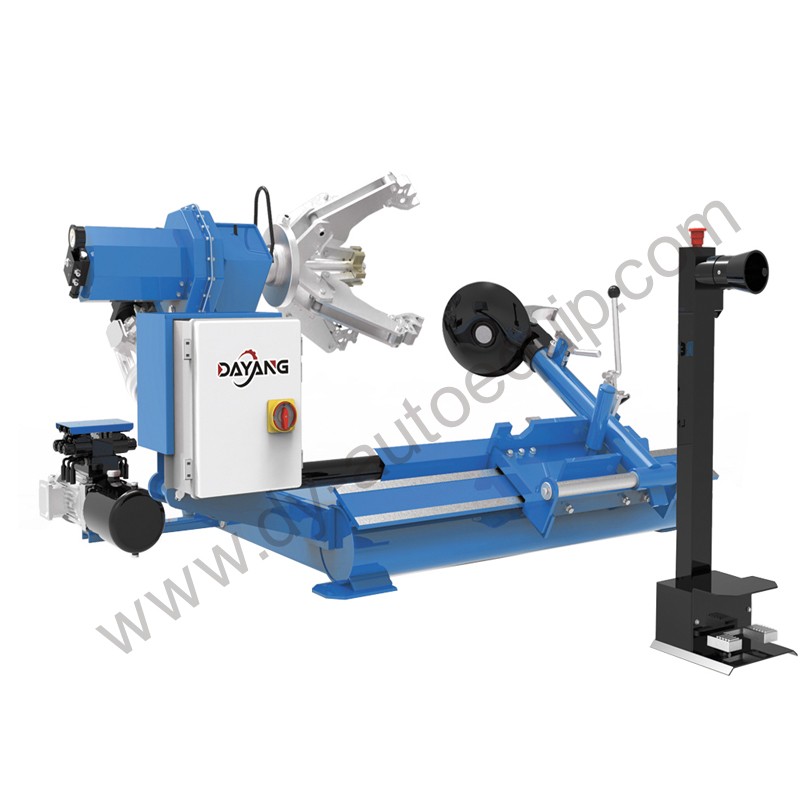

DY-T990A rim from 14'-26' truck tyre changer

Specifications
Max. wheel diamete------------------62"(1600mm)
Handles wheels rim from-----------14" to 26"
Max. wheel width---------------------30"(780mm)
Max. wheel weight-------------------500kg
Hydraulic pump motor--------------1.5kw 380V
Spindle motor-------------------------1.5kw 380V
Net weight-----------------------------570kg
Package size-------------------------2030*1600*940mm
8 units/20GP 16 units/40GP 24 units/40HQ

EMAIL

 Features



1. Automatic tyre changer for large trucks, agricultural vehicle, buses and large-scale construction vehicle.



2. Movable control platform, convenient for operate and observe.



3. Operation voltage 24V makes safe and reliable.



4. The arm with the features of high and low speed rotation and both directions rotation to mounting / demounting all type of tyres.



5. The tool bracket, lifting arm and clamps are controlled by hydraulic system.






Specifications



Max. wheel diamete------------------62"(1600mm)

Handles wheels rim from-----------14" to 26"

Max. wheel width---------------------30"(780mm)

Max. wheel weight-------------------500kg

Hydraulic pump motor--------------1.5kw 380V

Spindle motor-------------------------1.5kw 380V

Net weight-----------------------------570kg

Package size-------------------------2030*1600*940mm

8 units/20GP  16 units/40GP    24 units/40HQ
