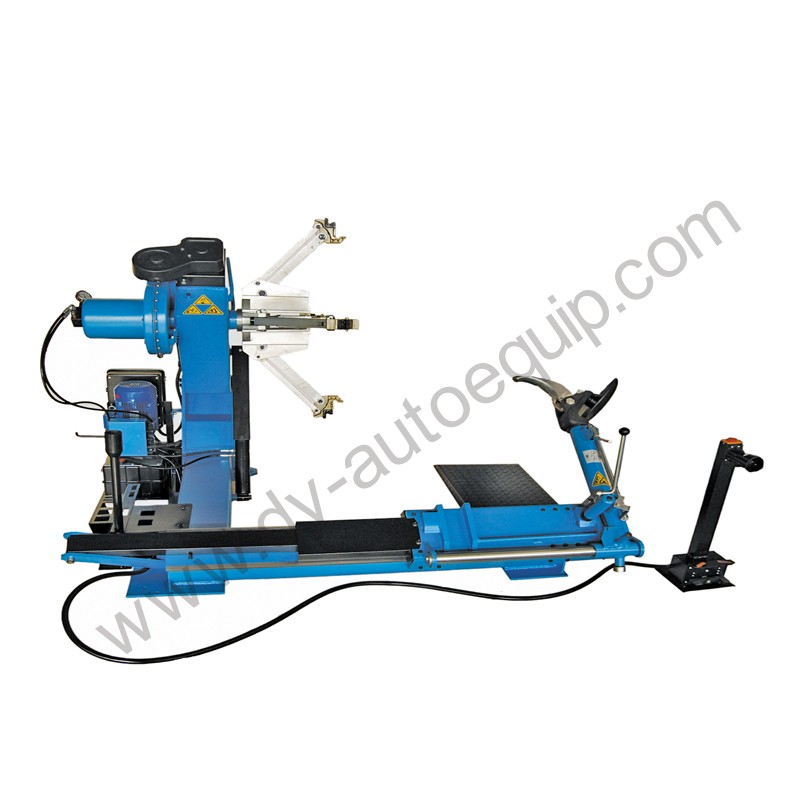

DY-T990B rim from 14'-42' trucks changing

Specifications
Max. wheel diameter---------------------90"(2300mm)
Handles wheels rim from---------------14" to 42"
Max. wheel width-------------------------41"(1050mm)
Max. wheel weight-----------------------1600kg
Hydraulic pump motor------------------2.2kw
Spindle motor----------------------------2.2kw
Net weight-------------------------------758kg
Package size--------------------- 2130*1850*1090mm
6 units/20GP 12 units/40GP

EMAIL





Features



1. Automatic tyre changer for large trucks, agricultural vehicle, buses and large-scale construction vehicle.



2. Movable control platform, convenient for operate and observe.



3. Operation voltage 24V makes safe and reliable.



4. The arm with the features of high and low speed rotation and both directions rotation to mounting / demounting all type of tyres.



5. The tool bracket, lifting arm and clamps are controlled by hydraulic system.




Specifications



Max. wheel diameter----------------------------90"(2300mm)



Handles wheels rim from-----------------------14" to 42"



Max. wheel width---------------------------------41"(1050mm)



Max. wheel weight--------------------------------1600kg



Hydraulic pump motor---------------------------2.2kw



Spindle motor--------------------------------------2.2kw



Net weight------------------------------------------758kg



Package size-------------------------------------- 2130*1850*1090mm



   6 units/20GP    12 units/40GP
