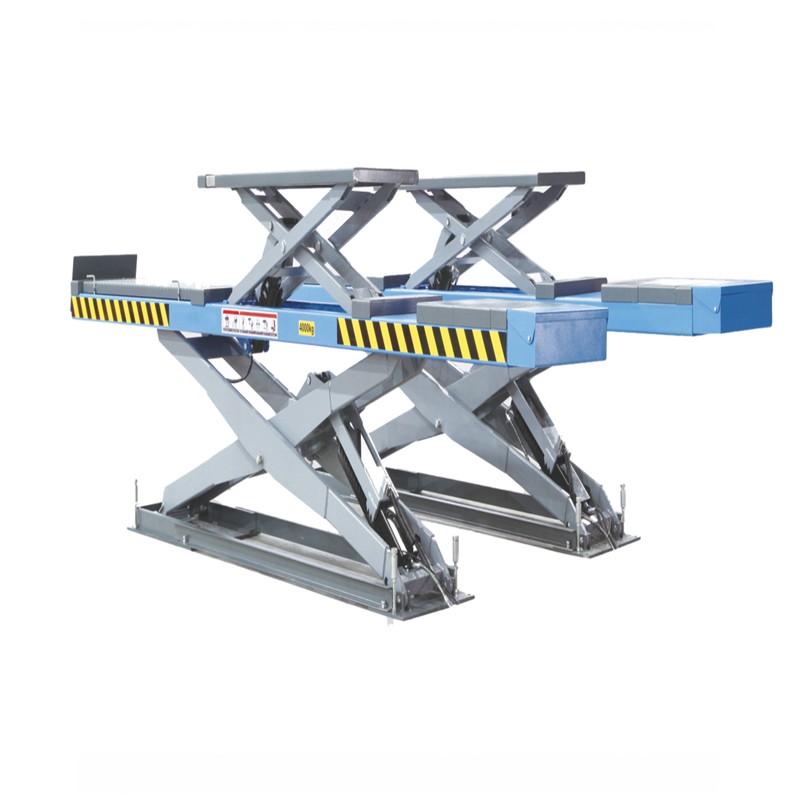

DY-QJY4.0SA inground installation

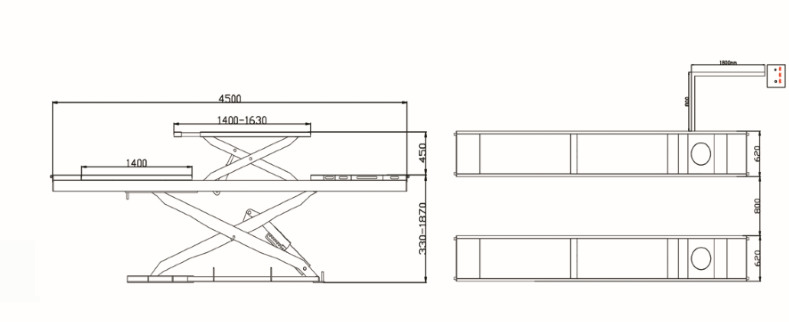

Specification
Model - DY-QJY4.0SA/DY-QJY5.0SA
First lifting capacity ------------------ 4000kg / 5000kg
Secondary lifting capacity ------------------- 2500kg
First lifting height ------------------------------1800mm
Secondary lifting height---------------------- 450mm
Minimum height ------------------------------- 330mm
Runway length ------------------- 4500mm /4800mm
Runway width --------------------------------- 620mm
Lifting time-------------------------------------- 65S
Air pressure---------------------------------- 0.6-0.8 Mpa
Power supply ------------------------------ 110V~415V
Net weight ------------------------------1900kg /2020kg
9 units can be put into one 20ft container

EMAIL


 Features

1. Suitable to car repair shop for alignment and repairing.

2. In-ground installation.

3. Equipped with sideslip plates and spaces for wheel turntables.

4. Adjustable rear turntables.

5. 24V limit switch and 24V safety voltage.

6. Automatic mechanical lock engaged during rising to ensure vehicles safety.

7. Runway synchronizer system prevents vehicles tilting.




Specification

Model                                               DY-QJY4.0SA/DY-QJY5.0SA

First lifting capacity--------------------------4000kg / 5000kg

Secondary lifting capacity------------------2500kg

First lifting height-----------------------------1800mm

Secondary lifting height---------------------450mm

Minimum height-------------------------------330mm

Runway length--------------------------------4500mm /4800mm

Runway width---------------------------------620mm

Lifting time-------------------------------------65S

Air pressure-----------------------------------0.6-0.8 Mpa

Power supply---------------------------------110V~415V

Net weight-------------------------------------1900kg /2020kg

9 units can be put into one 20ft container
