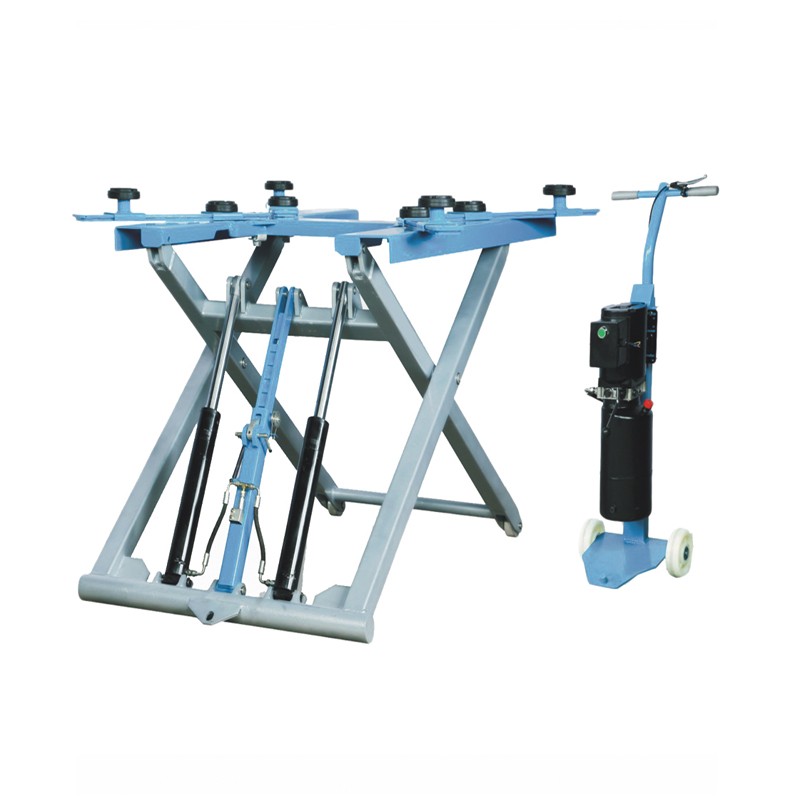

DY-QJY2.8S portable for car lift

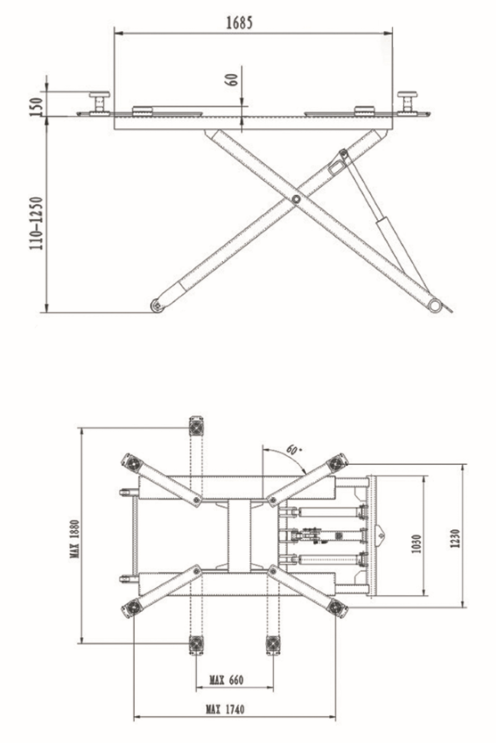

Specifications
Lifting capacity-----------------2800kg
Lifting height--------------------1250mm
Min. height----------------------110mm
Platform width------------------1040mm
Platform length-----------------1685mm
Motor power---------------------2.2kw
Raising time---------------------30s
Air supply------------------------6-8bar
Power supply-------------------110V~415V
Net weight-----------------------450Kg
36 units can be put into one 20ft container

EMAIL


Features

1. Portable for desired positions, less spaces needed when stand-by.

2. Support arm adjustable for the tire service of different vehicles.

3. Manual self-lock device for safety at any working height.

4. Two hydraulic cylinders.

5. Manual single point lock release.




Specifications

Lifting capacity-----------------2800kg

Lifting height--------------------1250mm

Min. height----------------------110mm

Platform width------------------1040mm

Platform length-----------------1685mm

Motor power---------------------2.2kw

Raising time---------------------30s

Air supply------------------------6-8bar

Power supply-------------------110V~415V

Net weight-----------------------450Kg

36 units can be put into one 20ft container
