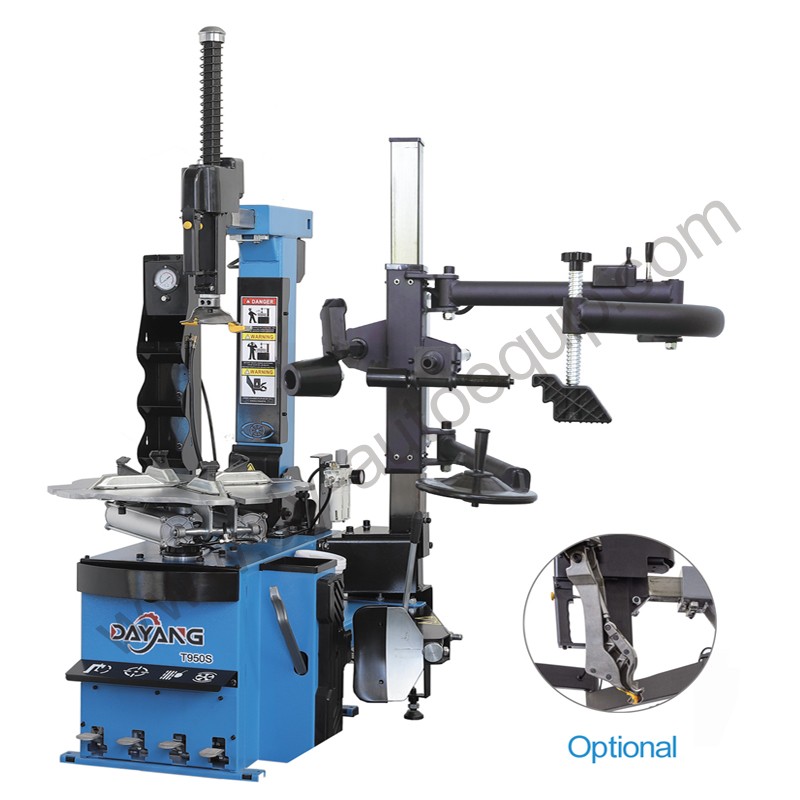

DY-T950S rim clamping inside 13'-16'

Specifications
Motor power-------------------0.75KW/1.1 KW
Rim Clamping outside------12"-24"
Rim Clamping inside--------13"-26"
Max. tire diameter-----------44”(1120mm)
Max. tire width----------------14"(355mm)
Power supply-----------------100V-415V,50/60HZ
Rotating speed---------------6r/min
Working pressure-----------8-10bar
Bead breaker force---------2500kg
N.W----------------------------330kg
Package size-1150*900*970mm /1145*485*370mm
24 units/20GP 48 units/40GP 48 units/40HQ

EMAIL




 Features

1. Optional automatic hook of working head.

 2. Advanced mechanical arm, the pulley part adopts the setting form, embedded the wear-resistant sliding block, with fine grinding square tube.

 3. All joints of the auxiliary arm are mounted with vertebral bearings, smooth without lag.

 4. Thicker working plate, precision cast steel material claw, high quality all-aluminum small cylinder.

 5. Aluminum alloy big cylinder.

 6. Optional clamping inside 28”.



 Specifications

Motor power-------------------0.75KW/1.1 KW

Rim Clamping outside------12"-24"

Rim Clamping inside--------13"-26"

Max. tire diameter-----------44”(1120mm)

Max. tire width----------------14"(355mm)

Power supply-----------------100V-415V,50/60HZ

Rotating speed---------------6r/min

Working pressure-----------8-10bar

Bead breaker force---------2500kg

N.W----------------------------330kg

Package size---------------1150*900*970mm &1145*485*370mm

24 units/20GP 48 units/40GP 48 units/40HQ






15-16 changer.jpg
