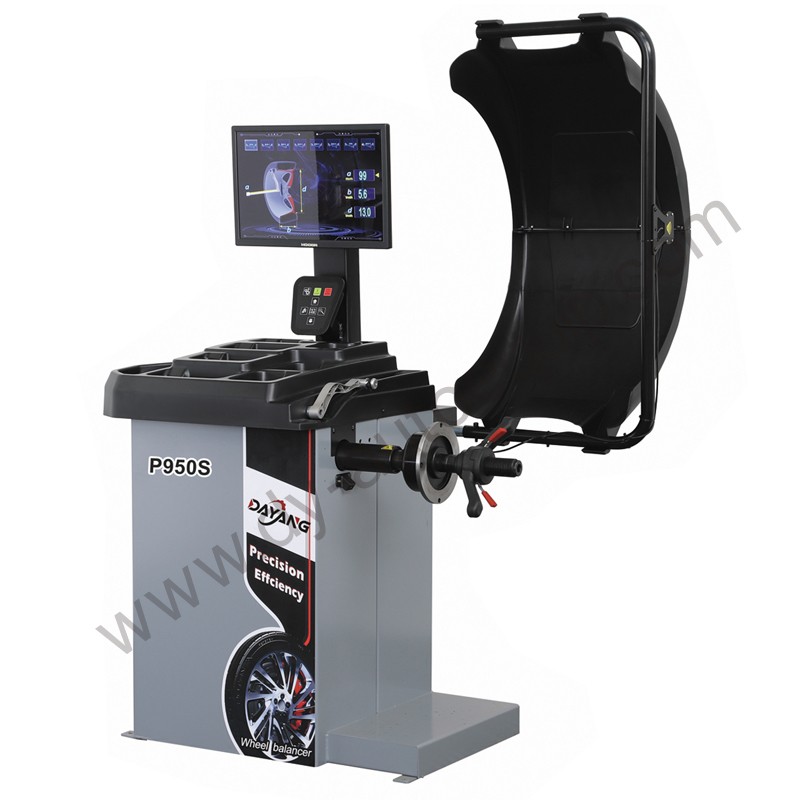

DY-P950S Rim diameter 10'-24' wheel balance machine

Specifications
Max. wheel weight--------65kg
Max. wheel diameter-----950mm
Rim diameter---------------10”-24”
Rim width--------------------4”-16”
Balancing precision-------1g
Balancing speed-----------200rpm
Balancing cycle------------7S
Motor power--------------- 0.25kw
Weight-----------------------110KG
Power supply--------------100/240V-1Ph, 50Hz/60HZ
Packing Size-------------- 950*750*1150mm
36 units/20GP 72 units/40GP

EMAIL


Features

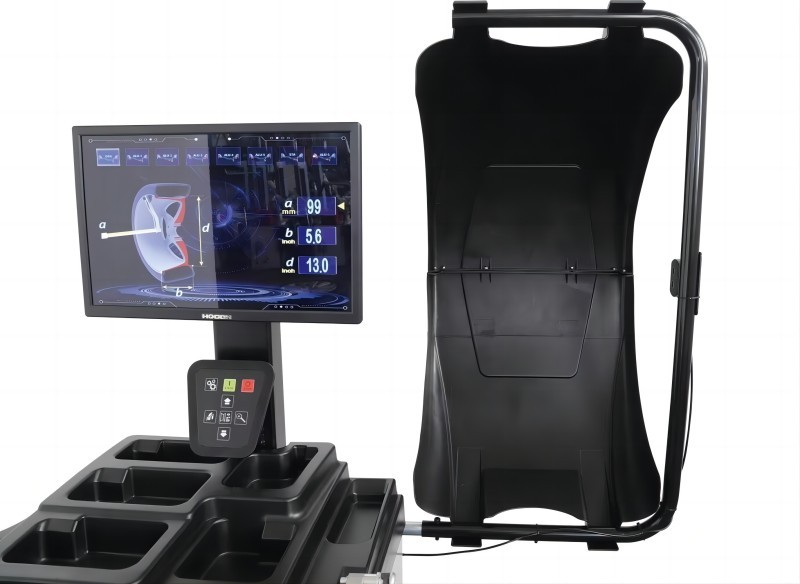

1. Large LCD display 19.5”.

2. With automatic static balance and dynamic balance, ALU program.

3. Automatic Distance Ruler, the control panel automatically displays the data.

4. HTD program, split to hide weight behind spokes.

5. OPT program, wheel vs rim optimization.

6. With fault diagnosis system to check the working status of key components.


 Specifications


Max. wheel weight-------65kg

Max. wheel diameter----950mm

Rim diameter-------------10”-24”

Rim width------------------4”-16”

Balancing precision------1g

Balancing speed----------200rpm

Balancing cycle------------7S

Motor power--------------- 0.25kw

Weight----------------------110KG

Power supply-------100-240V, 50Hz/60HZ

Packing Size------------- 950*750*1150mm

36 units/20GP      72 units/40GP
