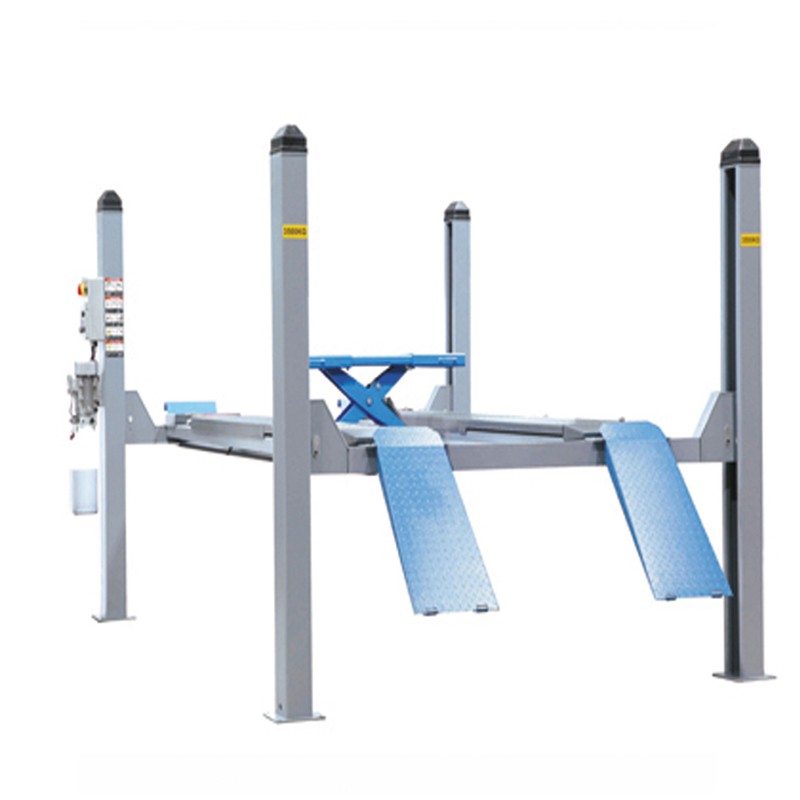

DY-QJY4.0FA car lift

Technical Specification:
Model-DY-QJY3.5FA /DY-QJY4.0FA /DY-QJY5.0FA
Lifting capacity-------------- 3500kg /4000kg / 5000kg
Second lifting---------------- 2500kg
Lifting height ---------------- 1500mm+350mm
Minimum height -------------220/220//260mm
Runway length --------------4200 /4500 / 4800mm
Runway width--------------- 550mm
Lifting time--------------------60s
Motor power------------------2.2/2.2/3.0kw
Weight ------------------------1200/1250/1350kg
Power supply ---------------110~415V
12 units can be put into one 20ft container

EMAIL



 Features



1. Adopt hydraulic cylinder and rope driving.

2. Manual lock release from one side, more convenient.

3. Adopt mechanical linkage with manual locks,four-point locking system.

4. Security lock with a wire rope to ensure safety.

5. Runway spacing is adjustable for different wheel base vehicles.

6. 24V safety voltage is optional, with protection of overload, over pressure, steel rope broken.

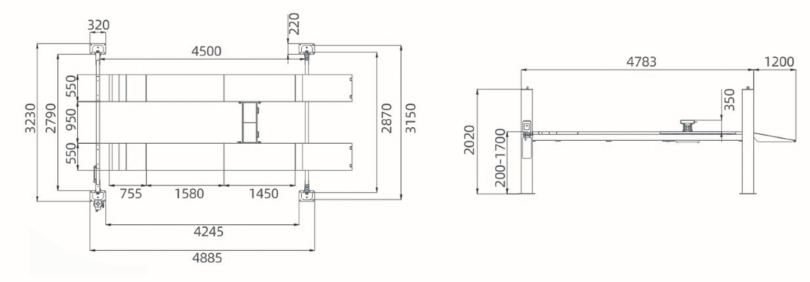

 Specification

Model                                          DY-QJY3.5FA /DY-QJY4.0FA /DY-QJY5.0FA

Lifting capacity                                         3500kg /4000kg / 5000kg

Second lifting                                                    2500kg

Lifting height                                                     1500mm+350mm

Minimum height                                                 220/220//260mm

Runway length                                                  4200 /4500 / 4800mm

Runway width                                                    550mm

Lifting time                                                          60s

Motor power                                                      2.2/2.2/3.0kw

Weight                                                              1200/1250/1350kg

Power supply                                                    110~415V

   12 units can be put into one 20ft container
