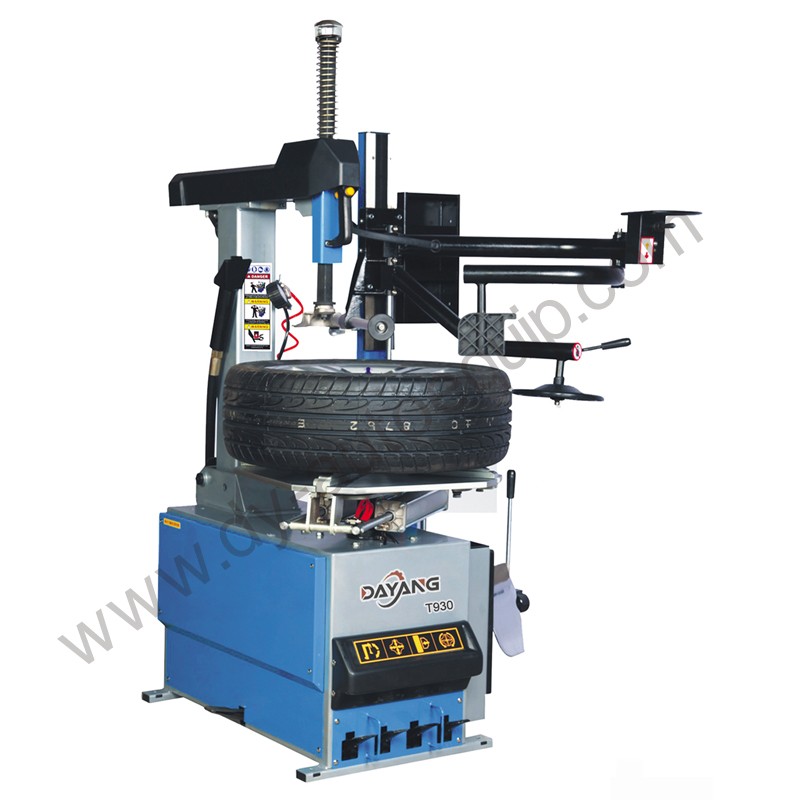

DY-T930 rim clamping inside 12'-24'

Specifications
Motor power----------------------- 0.75/1.1KW/0.55KW
Rim Clamping outside-----------10"-21"
Rim Clamping inside-------------12"-24"
Max. tire diameter--------------- 44”(1120mm)
Max. tire width------------------- 14”(360mm)
Working pressure----------------8-10bar
Bead breaker force-------------2500kg
Power supply--------------------100V-415V,50/60HZ
N.W--------------------------------384kg

EMAIL

1.  Features



1. Inclined column and mounting/demounting arm of pneumatic locking.

2. Six-axis guide sleeve extends to 270mm, avoid deformation effectively.

3. Special steel header of mounting/demounting.

4. Clamp jaws made by USA 8640 alloy steel, high strength, wear resistant and anti-rust.

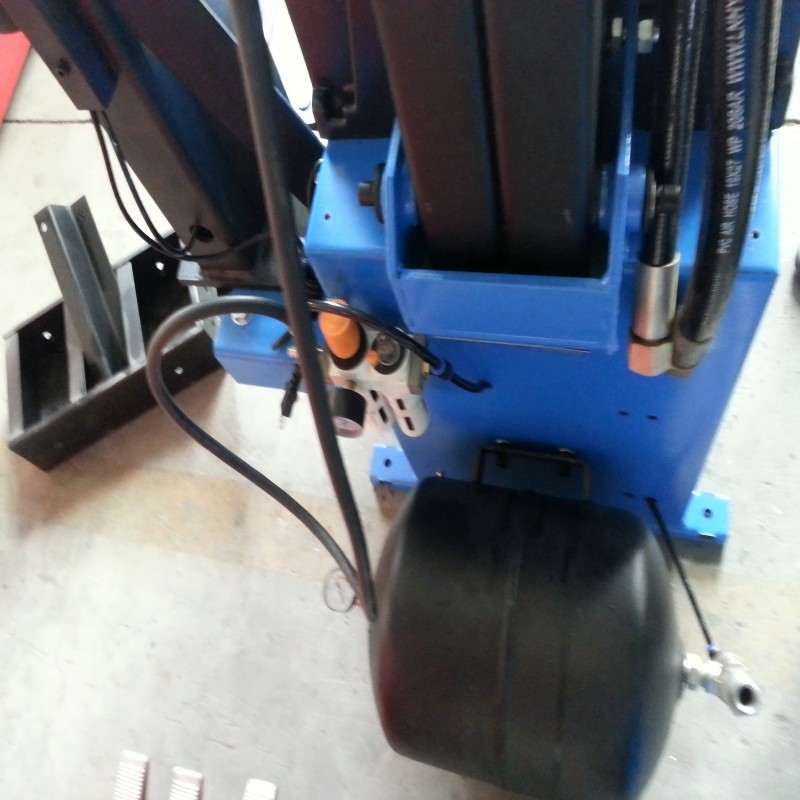

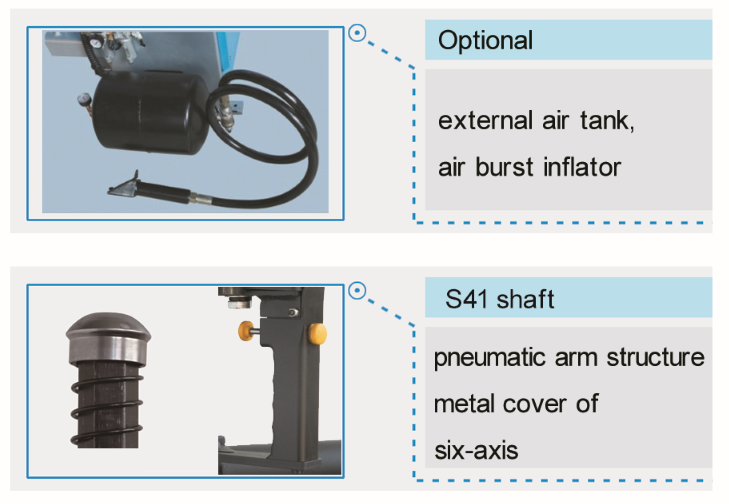

5. External storage tank, fast air inflating device of handheld type.

6. Special pedal control, assistant helper arm can be used for wide flat tyres.

7. Adjustable clamp jaws extend to 8”-26”(optional).



2. Specifications

Motor power---------------------- 0.75/1.1KW/0.55KW

Rim Clamping outside-----------10"-21"

Rim Clamping inside-------------12"-24"

Max. tire diameter--------------- 44”(1120mm)

Max. tire width------------------- 14”(360mm)

Working pressure---------------8-10bar

Bead breaker force------------2500kg

Power supply-------------------100V-415V,50/60HZ

N.W-------------------------------384kg

Package size------------------ 1100*950*950mm &1330*1080*300mm
