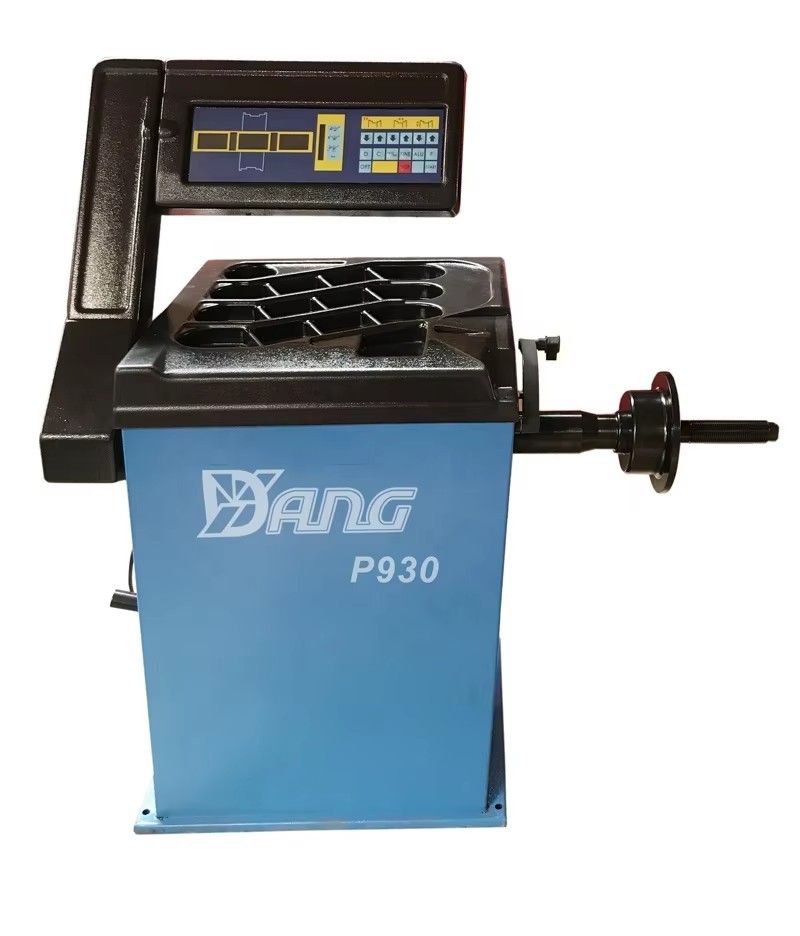

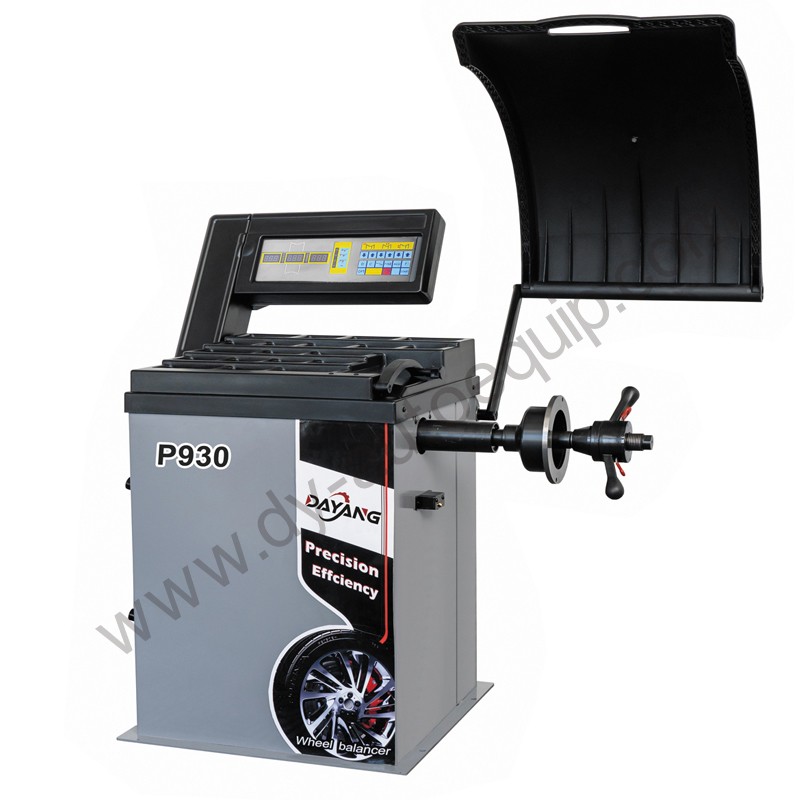

DY-P930 Rim diameter 10'-24' wheel balancing

Specifications
Max. wheel weight--------------65kg
Max. wheel diameter-----------950mm
Rim diameter---------------------10"-24"
Rim width--------------------------4"-16"
Balancing precision-------------1g
Balancing speed-----------------200rpm
Balancing speed-----------------7S
Motor power----------------------0.25kw
Weight-----------------------------105KG
Power supply--------------------100-240V, 50Hz/60HZ
Packing Size------------------- 985*770*1120mm
34 units/20GP 72 units/40GP

EMAIL





Features



1. This model is a compact, economical controlled wheel balancer.

2. Microprocessor is composed of integrate circuit, with high-capacity and high-stability.

3. ALU program and static program, LED digital display.
4.
Automatic measuring tape to measure diameter and distance, converted function of inch to millimeter, gram to ounce.
5. The sensor, use pressure chinaware plate, improves the sensitivity and durability.



Specifications

Max. wheel weight-------65kg

Max. wheel diameter----950mm

Rim diameter-------------10"-24"

Rim width------------------4"-20"

Balancing precision------1g

Balancing speed----------200rpm

Balancing cycle------------7S

Motor power--------------- 0.25kw

Weight---------------------105KG

Power supply-------100-240V, 50Hz/60HZ

Packing Size------------- 985*770*1120mm

34 units/20GP             72 units/40GP
