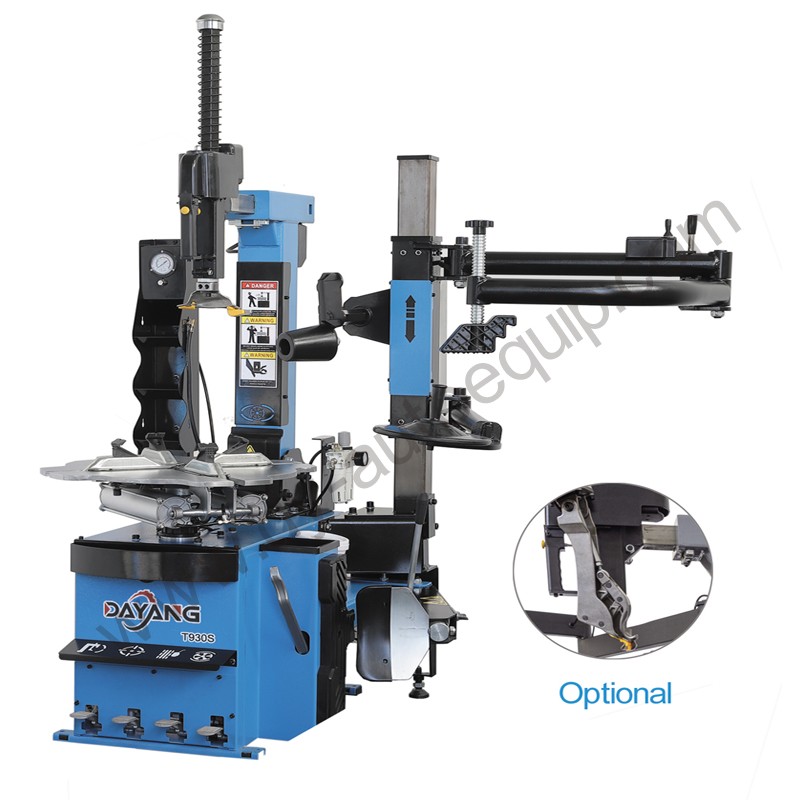

DY-T930S rim clamping inside 12'-24'

 Features

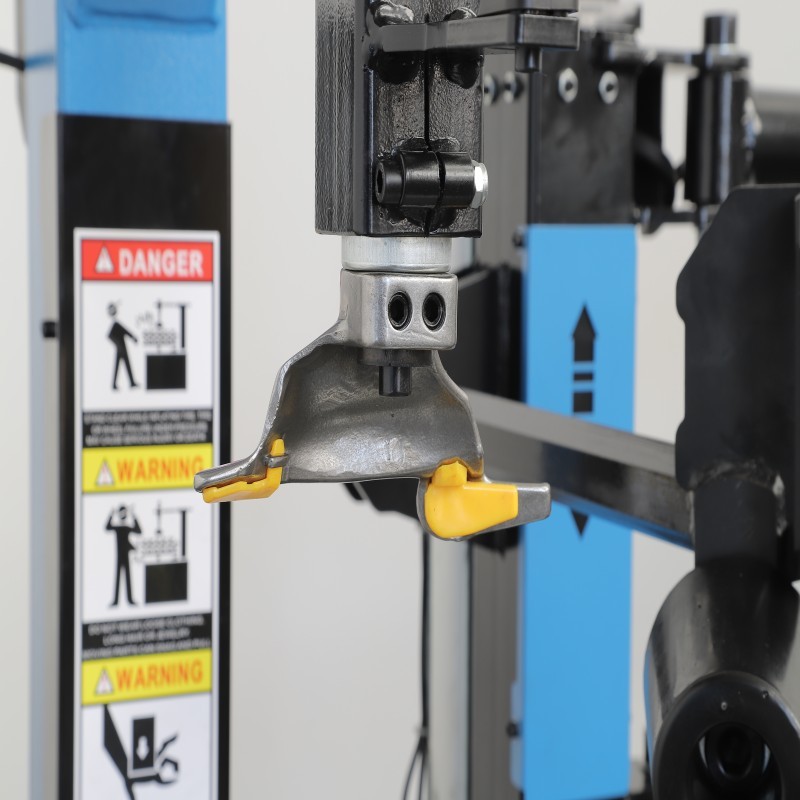

1. Optional automatic hook of working head.

2. Advanced mechanical arm, the pulley part adopts the setting form, embedded the wear-resistant sliding block,with fine grinding square tube.

3.All joints of the auxiliary arm are mounted with vertebral bearings, smooth without lag.

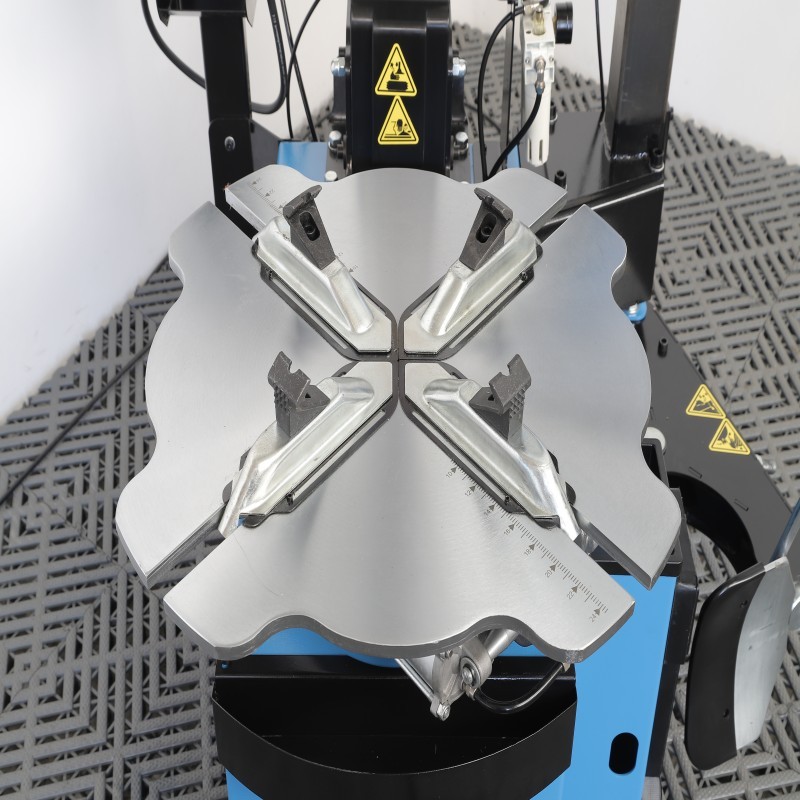

4.Thicker working plate, precision cast steel material claw, high quality all-aluminum small cylinder.

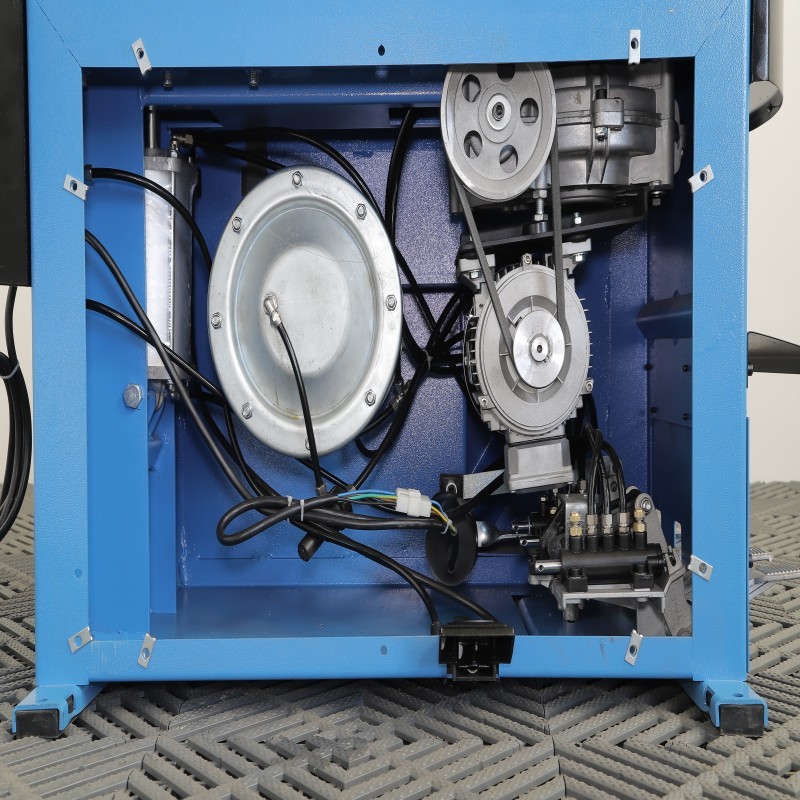

5. Aluminum alloy big cylinder.

6. Optional clamping inside 26”or 28”.

3. Specifications

Motor power------------------------------0.75KW/1.1 KW

Rim Clamping outside-----------------10"-22"

Rim Clamping inside-------------------12"-24"

Max. tire diameter----------------------39”(1000mm)

Max. tire width--------------------------14"(355mm)

Power supply---------------------------100V-415V,50/60HZ

Rotating speed-------------------------6r/min

Working pressure----------------------8-10bar

Bead breaker force--------------------2500kg

N.W---------------------------------------310kg

Package size--------------------------1030*900*930mm &1145*485*370mm

24 units/20GP  48 units/40GP   48 units/40HQ
