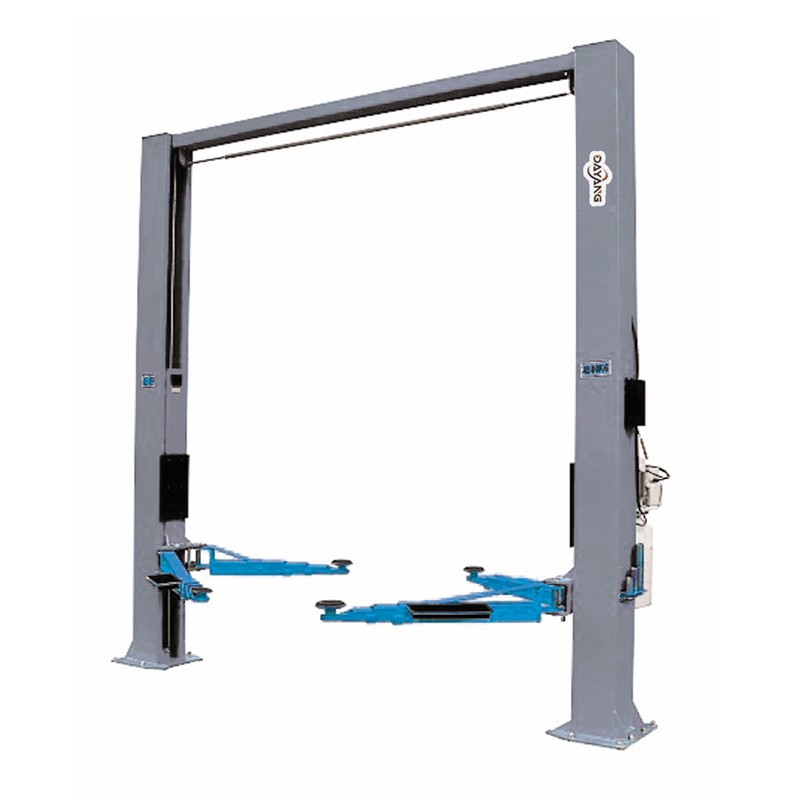

DY-210C direct-drived cylinders

Technical Specification:
Lifting capacity---------------------4500kg
Lifting height------------------------1900mm
Minimum height--------------------90mm
Lifting time-------------------------- 50-60s

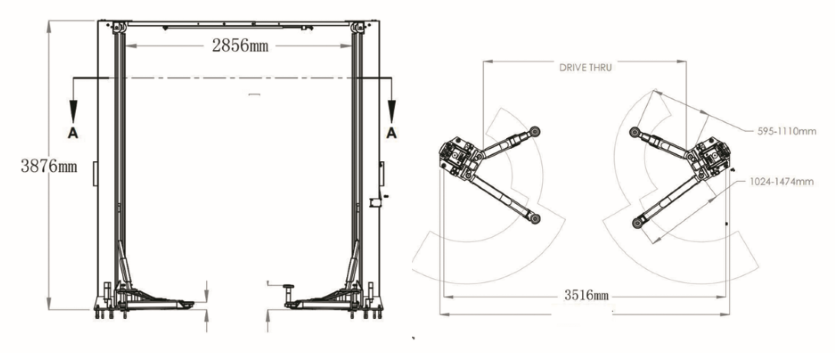

Overall height-----------------------3876mm
Overall width------------------------3516mm
Width between columns----------2850mm
Motor power-------------------------3.0kw
Power supply-----------------------220/380/425V
Weight-------------------------------750kg
12 units can be put into one 20ft container

EMAIL

 Features



1. 4500kg / 5000kg Capacity.Direct-drived hydraulic cylinders.

2. Dual hydraulic cylinders,designed and made on high standard, high quality oil seals.

3, Single-point safety release, and dual safety design.

4. Learfloor design, provide unobstructed floor space.

5. Overhead safety shut-off device.

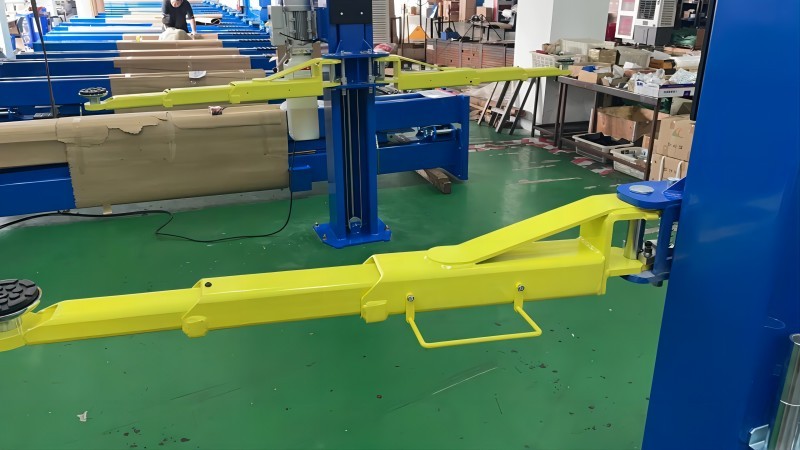

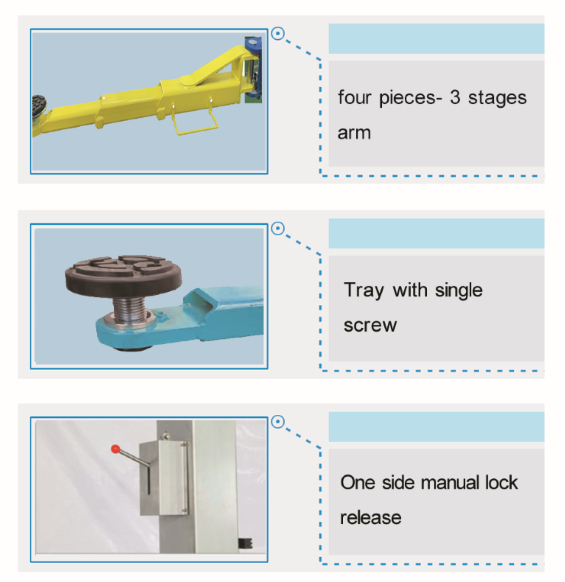

6. Three-stages arms are suitable for more vehicles.

7. Automatic arms restraints.



Specification

Lifting capacity-------------------4500kg/5500kg

Lifting height----------------------1900mm

Minimum height-------------------90mm

Lifting time------------------------ 50s-60s

Overall height---------------------3876mm

Overall width-----------------------3516mm

Width between columns---------2850mm

Motor power------------------------3.0kw

Power supply-----------------------110V~425V

Weight-------------------------------750kg

12 units/20GP      36 units/40HQ
