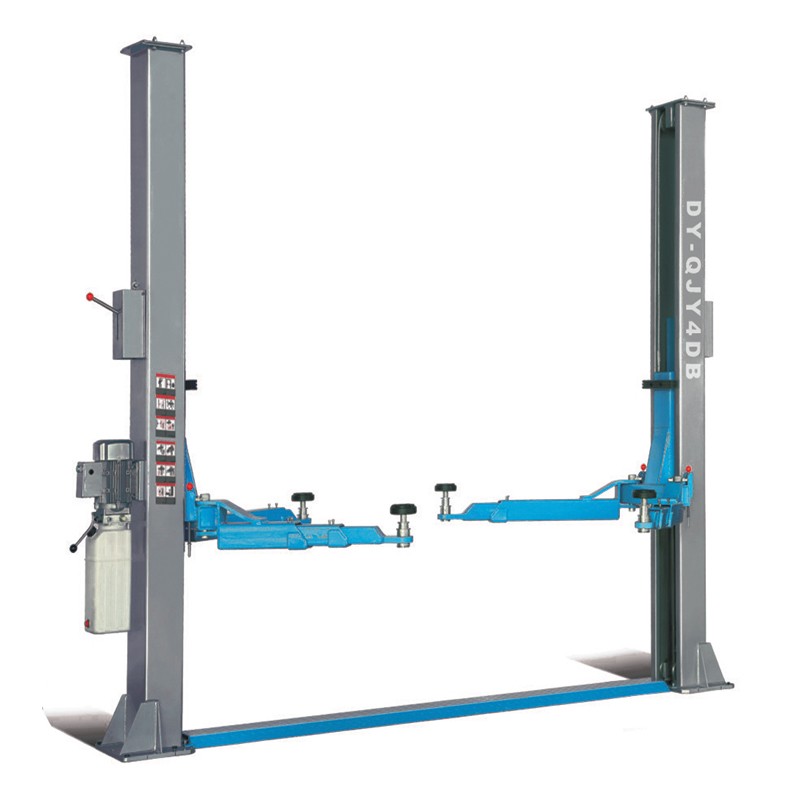

DY-QJY4DB lock release form one side manual lock

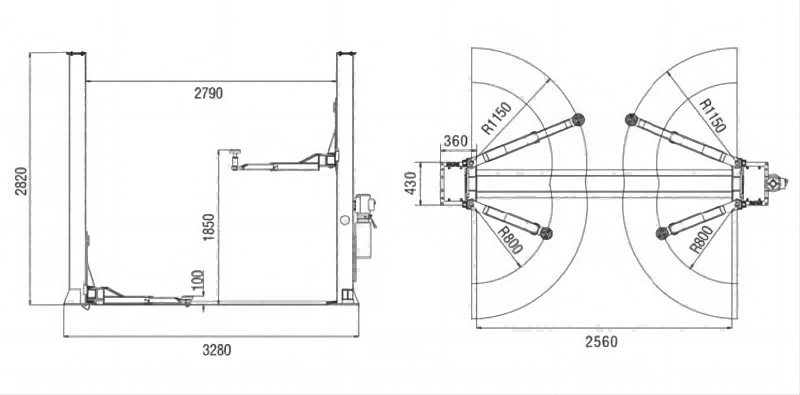

Technical Specification:
Lifting capacity-----------------4000kg
Lifting height--------------------1850mm
Minimum height----------------110mm
Lifting time-----------------------50s-60s
Overall height-------------------2790mm
Overall width--------------------3280mm
Width between columns------2790mm
Motor power-------------------- 2.2kw
Weight----------------------------590kg
Power supply-------------------110V~415V
24 units can be put into one 20ft container

EMAIL

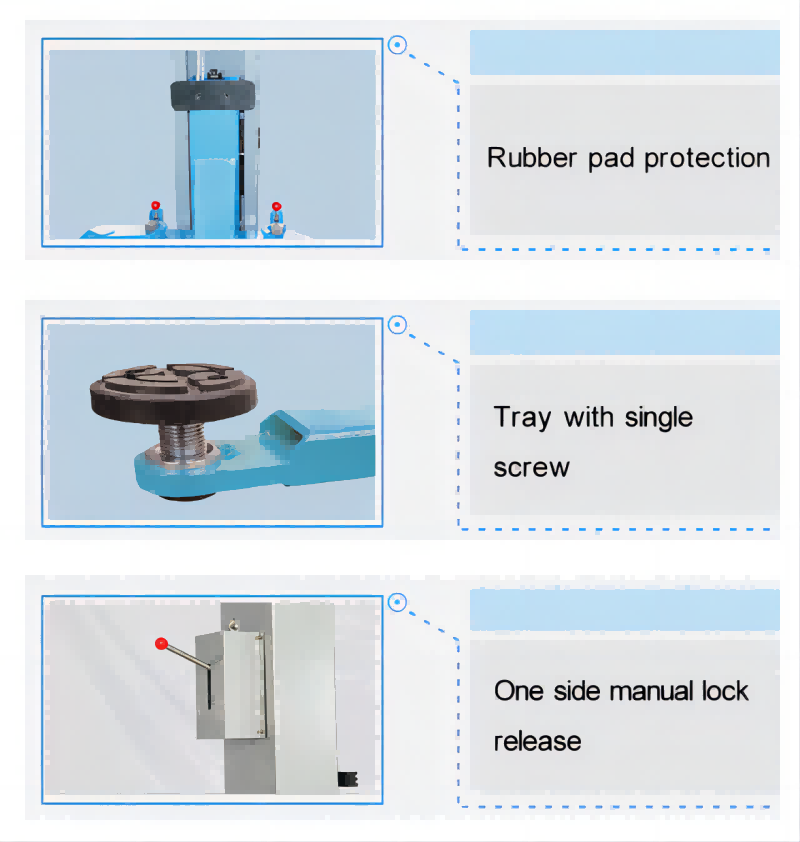

Main features:

1. Floor plate design is ideal choice for low ceiling shop.

2. Balance system of two cylinders, plate and wire rope chain.

3. Hydraulic pump and manual lock release from one sides.

4. With 24V limit switch, asymmetric column allows wider drive through clearance.

5. Rubber support pad with spiral adjust the height.


Specification:

Lifting capacity-----------------4000kg

Lifting height--------------------1850mm

Minimum height----------------110mm

Lifting time-----------------------50s-60s

Overall height-------------------2790mm

Overall width--------------------3280mm

Width between columns------2790mm

Motor power-------------------- 2.2kw

Weight----------------------------590kg

Power supply-------------------110V~415V

24 units can be put into one 20ft container
