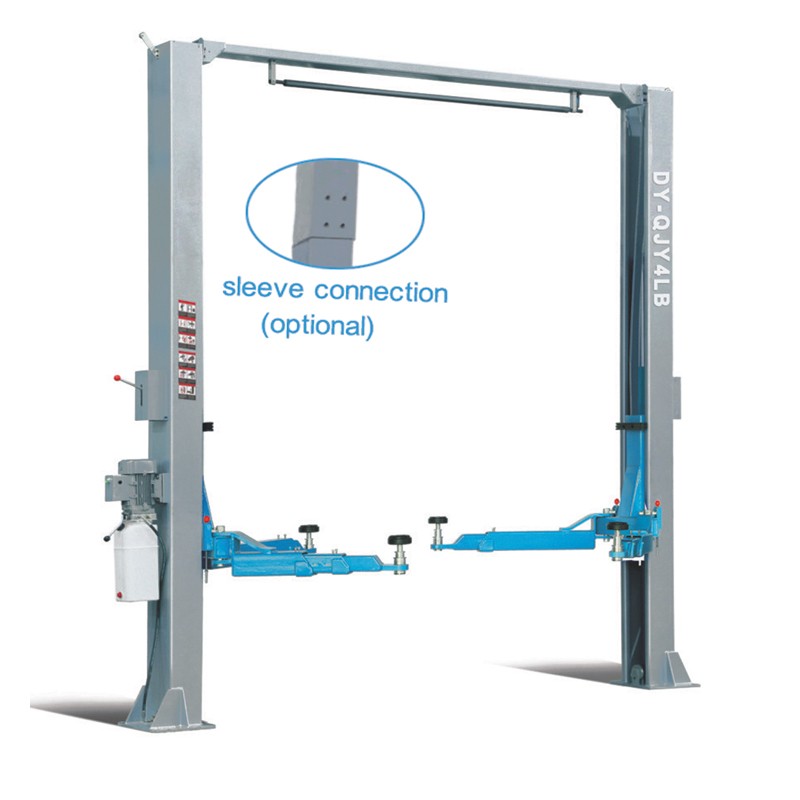

DY-QJY4LB one side manual lock

Main features

1. Clear floor design makes easy working under the vehicle.

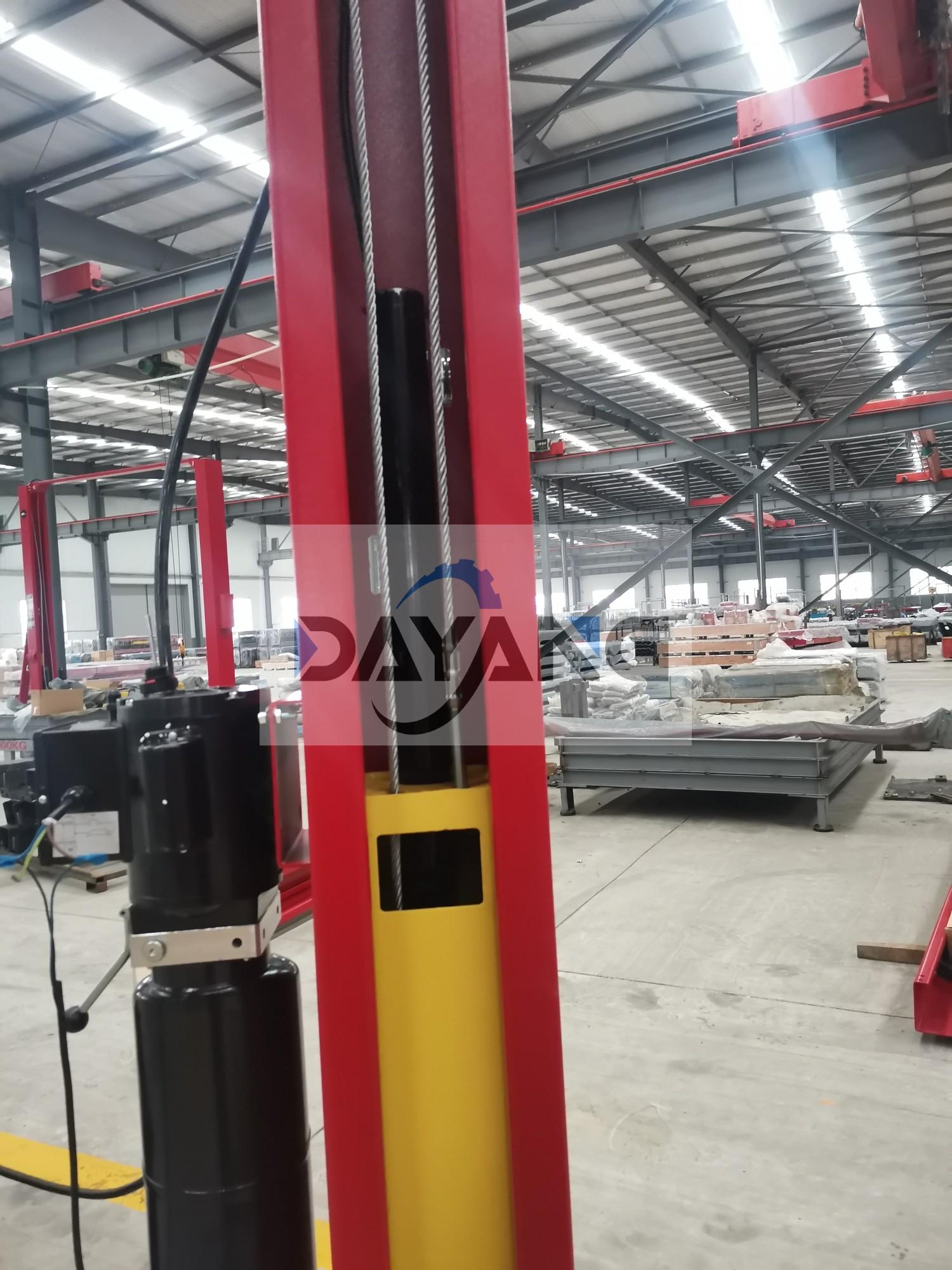

2. Balance system of two cylinder, plate and wire rope chain.

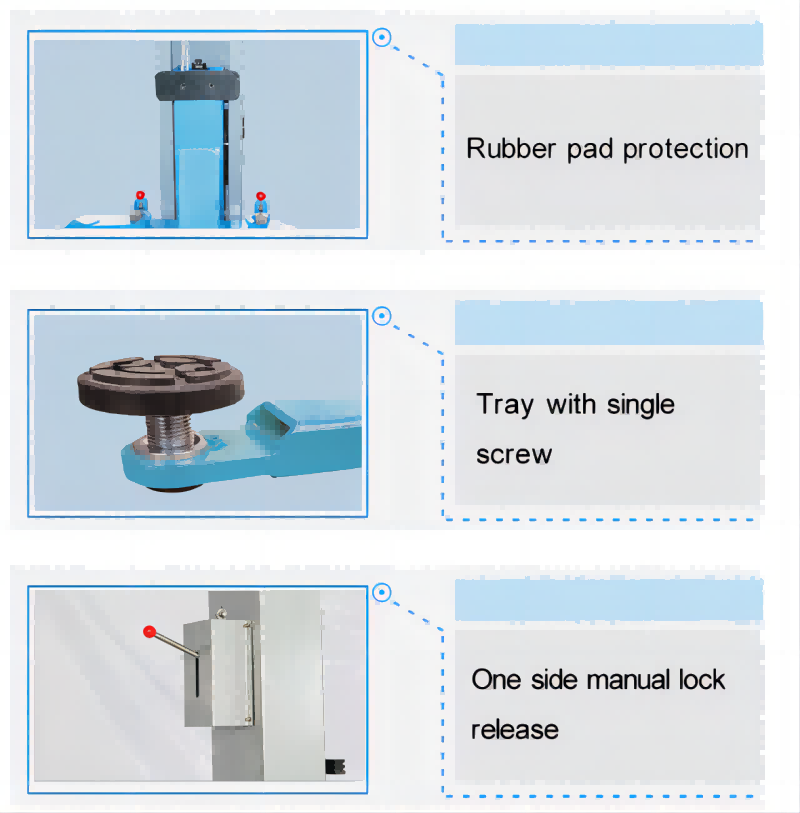

3. Hydraulic pump and manual lock release from one side.

4. With 24V limited switch, asymmetric column allows wider drive through clearance.

5. Rubber support pad with spiral adjust the height.

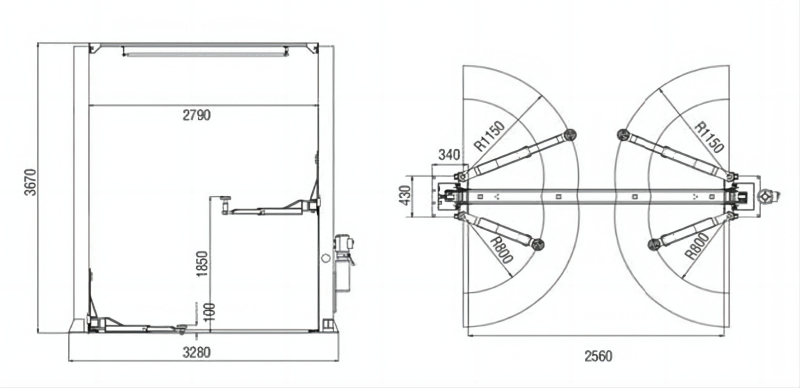

Specification:

Lifting capacity-------------------4000kg

Lifting height----------------------1850mm

Minimum height-------------------100mm

Lifting time--------------------------50s-60s

Overall height----------------------3670mm

Overall width-----------------------3280mm

Width between columns---------2790mm

Motor power------------------------2.2kw

Power supply-----------------------110V~415V

Weight-------------------------------650kg

12 units/20GP     36 units/40HQ
