DY-QJY4L car crane

Technical Specification:
Lifting capacity----------------------3200kg/4000kg
Lifting height-------------------------1900mm
Minimum height---------------------95mm
Lifting time--------------------------- 40-45s/50s
Overall height------------------------3726mm
Overall width-------------------------3420mm
Width between columns----------2820mm
Motor power-------------------------2.2kw
Power supply-----------------------220/380/425V
Weight--------------------------------645kg/689kg
Package------------------------------3750X530X770 mm
12 units can be put into one 20ft container

EMAIL

 Features



1. Clear floor design makes easy working under the vehicle.

2. Balance system of two cylinder, plate and wire rope chain.

3. Hydraulic pump and manual lock release from two sides.

4. With 24V limited switch, asymmetric column allows wider drive through clearance.

5. Rubber support pad with spiral adjust the height.

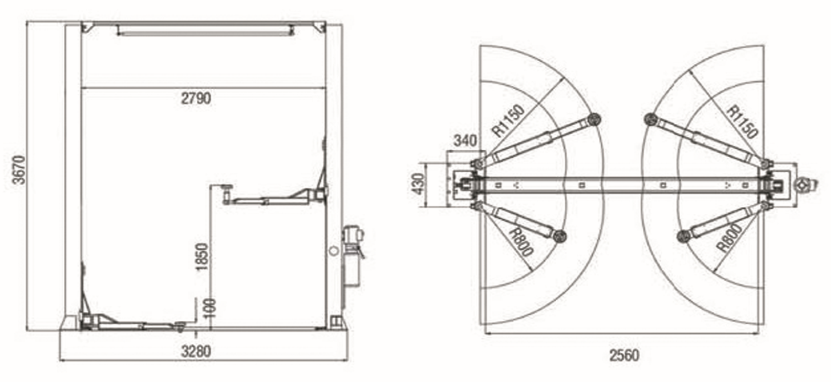

Specification

Lifting capacity--------------------4000kg

Lifting height----------------------1850mm

Minimum height-------------------100mm

Lifting time------------------------ 50s-60s

Overall height---------------------3670mm

Overall width-----------------------3280mm

Width between columns---------2790mm

Motor power------------------------2.2kw

Power supply-----------------------110V~415V

Weight-------------------------------600kg

12 units/20GP   36 units/40HQ
