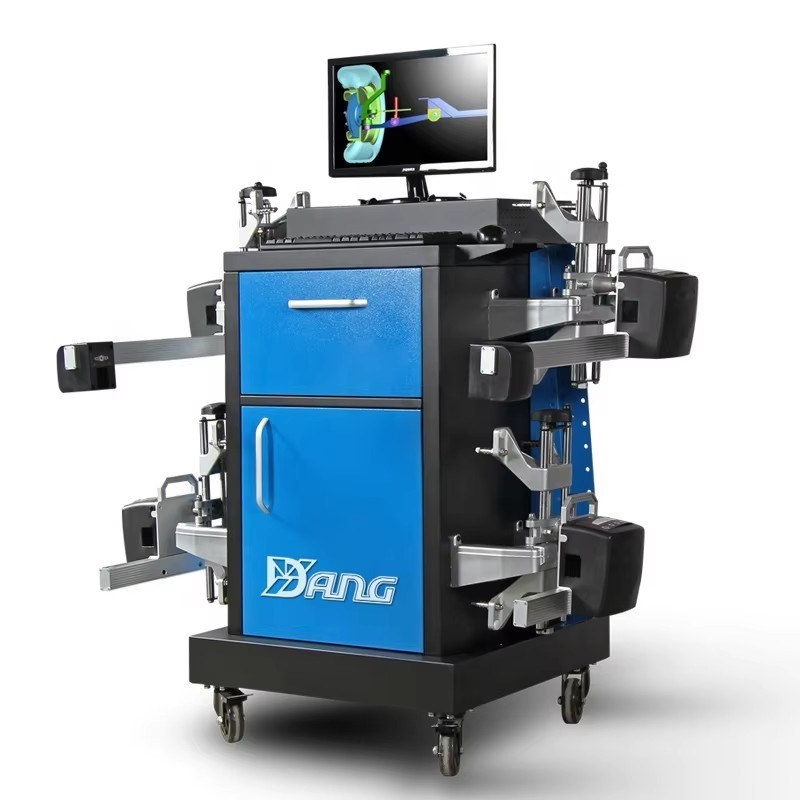

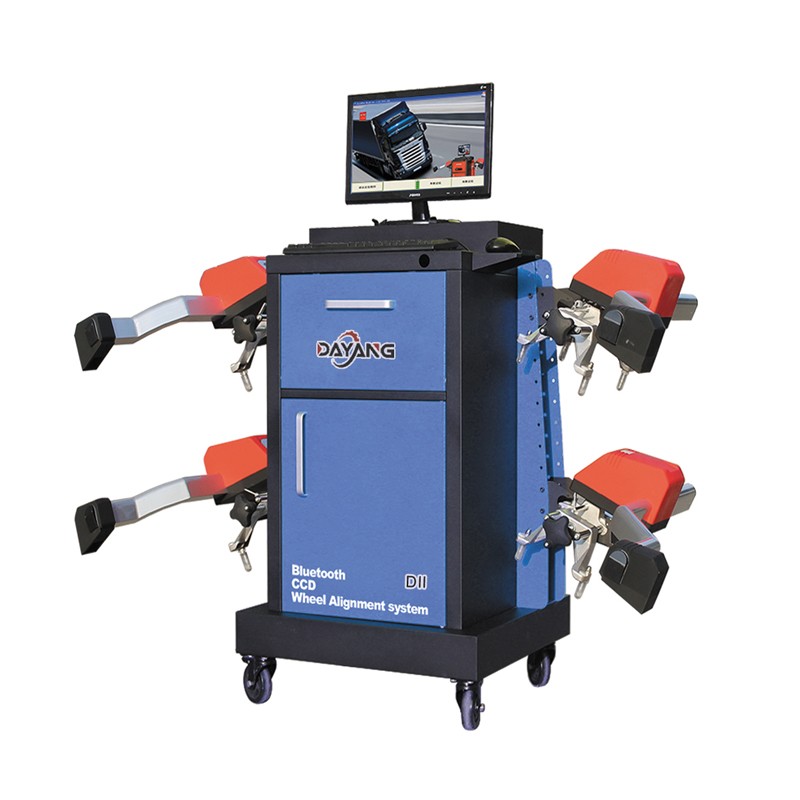

DY-DII CCD bluetooth Wheel Aligner Truck

Specifications:
Item ----------------- Accuracy ----------------Range
Sub toe-------------------±1’-----------------------±5°
Camber-------------------±1’-----------------------±60°
Kingpin caster-----------±5’----------------------±40°
Kingpin inclination------±5'----------------------±40°
Total toe-------------------±1’----------------------±10°

EMAIL




Features



1. Wireless Bluetooth 2.4G technology, ensure good communicating junctions in 60 meters.

2. Sensor boards adopt the patch wave soldering process,CPU adopts American Intelligent high-speed data acquisition technology, make sure the  failure rate tends to zero.

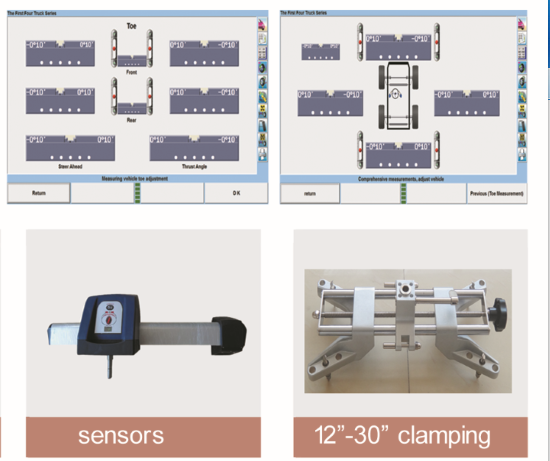

3. European tilt angle sensors, high accuracy and quick measuring speed, sensors with function of automatic alarm and charging indication.

4. Max measurement length can achieve 25 meters, Max clamping size achieves 30”.

5. 10 minutes to measure whole vehicle and 5 minutes to measure front axle.




Specifications




Accuracy

Range

Sub Toe

±1‘

±5°

Total toe

±1‘

±10°

Camber

±1‘

±60°

kingpin caster

±5‘

±40°

kingpin inclination

±5‘

±40°
