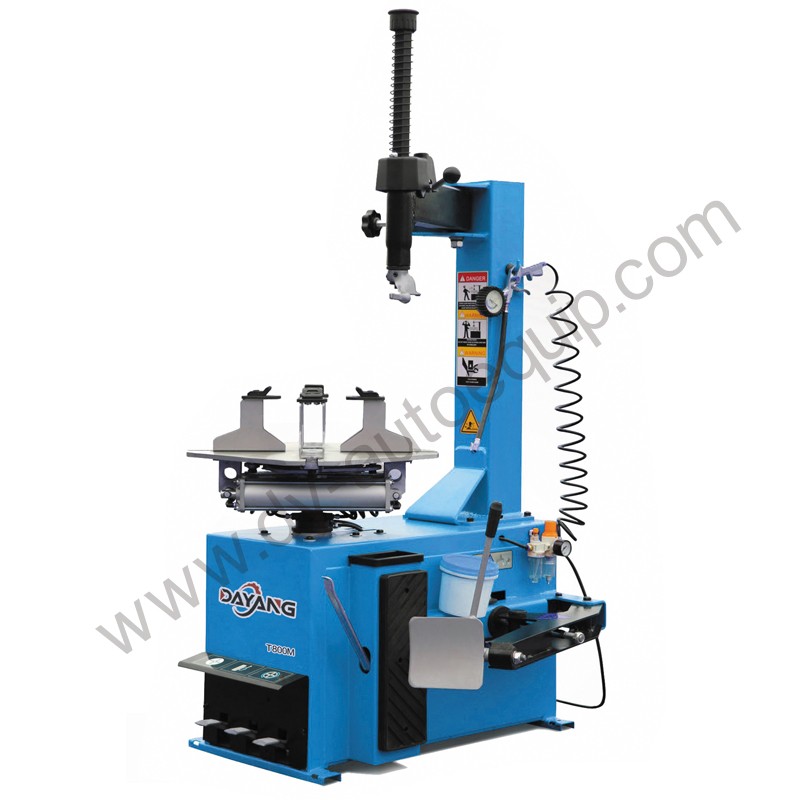

DY-T800M rim clamping outside 8'-22' tire changer

 Features

1. The range of the clamped rim is changed by adjusting the position of the boat.

2. Automatic centering four claws movement structure on the turntable, with synchronous performance.

3. Working head after high frequency quenching and surface plating hard inscription, to ensure strength, toughness and wear resistance.

4. Working head, claw and breaker, are equipped with protective covers and protective pads to ensure that the rim is not hurt.

Specifications

Motor power-------------------------0.75KW/ 1.1 KW

Rim Clamping outside------------8"-22"

Max. tire diameter-----------------38”(960mm)

Max. tire width---------------------3”-12”

Power supply----------------------100V-415V,50/60HZ

Rotating speed--------------------6r/min

Working pressure----------------8-10bar

Bead breaker force--------------2500kg

N.W---------------------------------165kg

Package size---------------------980*760*850mm

34 units/20GP    82 units/40GP   108 units/40HQ
