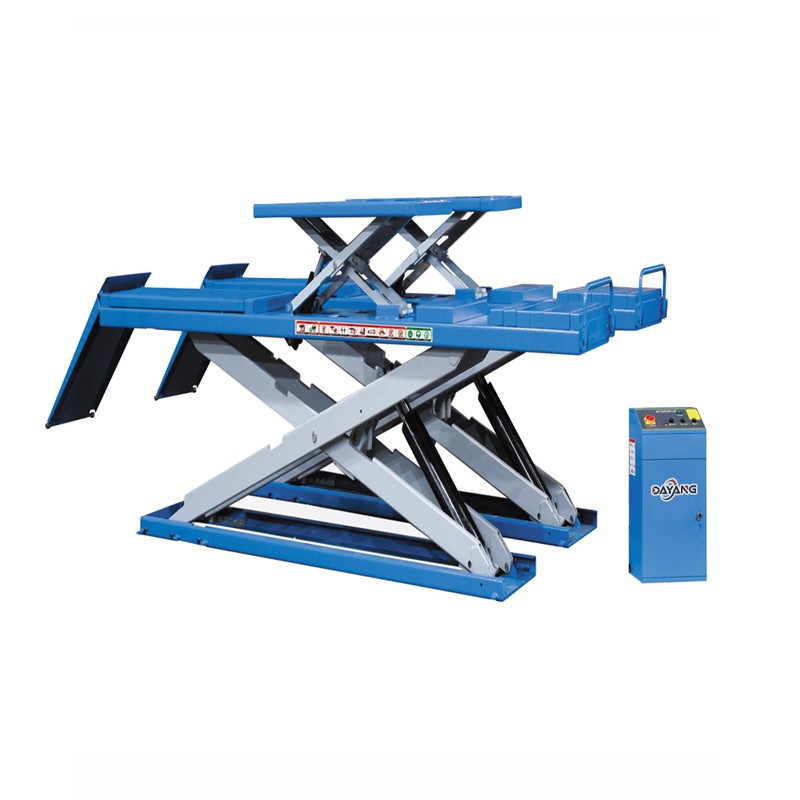

DY-QJY4.0SAB on ground installation

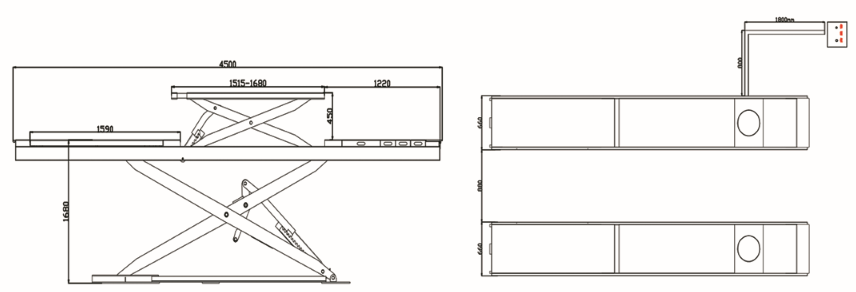

Specifications:
First lifting capacity------------------------------4000kg
Secondary lifting capacity---------------------2500kg
First lifting height--------------------------------1680mm
Secondary lifting height------------------------450mm
Platform length--------------------------1515-1680mm
Runway length-----------------------------------4500mm
Runway width------------------------------------660mm
Runway height-----------------------------------210mm
Lifting time----------------------------------------55S
Air pressure------------------------------------0.6-0.8Mpa
Power supply----------------------------------110V~415V
Net weight----------------------------------------2170kg
9 units can be put into one 20ft container

EMAIL

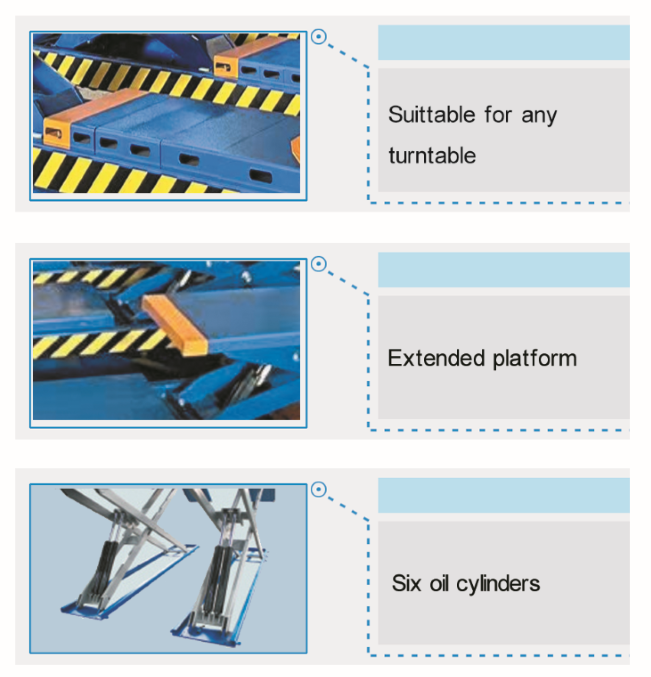

Features of scissor car lift

1. Super low profile and on ground installation.

2. Four cylinders driven and imported hydraulic parts,pneumatic parts, make sure smooth and durable.

3. Suitable for wheel alignment, body service and other repair work.

4. Pneumatic double-tooth self locking and prevention device of tube explosion.

5. Hydraulic lock and mechanical double-tooth claws,more safe and reliable.




Specifications

First lifting capacity------------------------------4000kg

Secondary lifting capacity---------------------2500kg

First lifting height--------------------------------1680mm

Secondary lifting height------------------------450mm

Platform length-----------------------------------1515-1680mm

Runway length-----------------------------------4500mm

Runway width------------------------------------660mm

Runway height-----------------------------------210mm

Lifting time----------------------------------------55S

Air pressure--------------------------------------0.6-0.8Mpa

Power supply------------------------------------110V~415V

Net weight----------------------------------------2170kg

9 units can be put into one 20ft container
