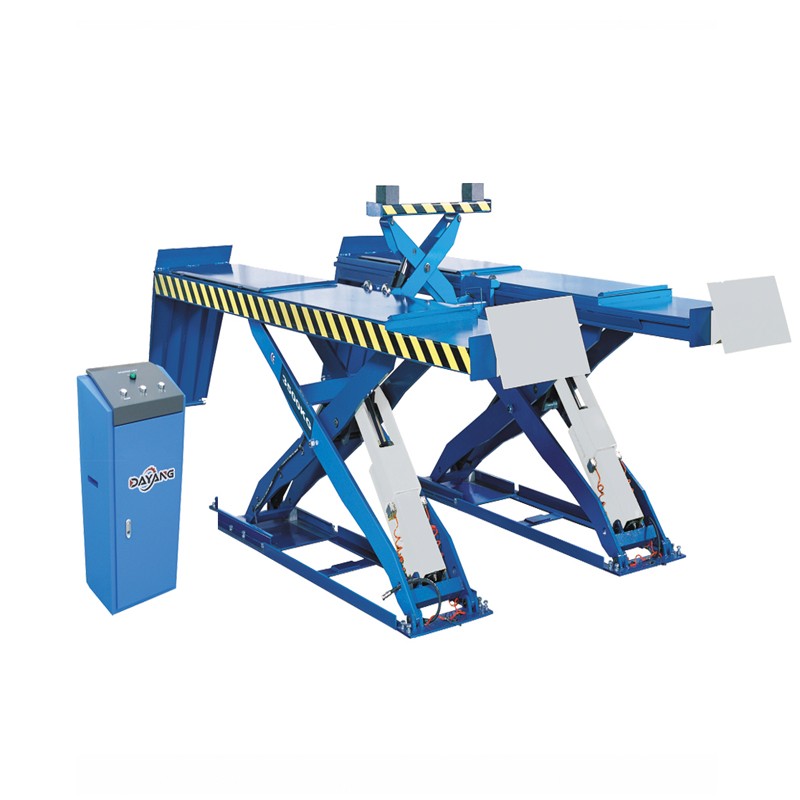

DY-QJY4.0SAT on ground installation

Features

1. Super low profile and on ground installation.

2. Imported hydraulic pneumatic and electrical components ensure good stability.

3. Pneumatic self-locking system and anti-explosion pipe structure are open automatically during machine lowering which ensures the whole safety.

4. Ingenious and unique sliding system and compact platform.

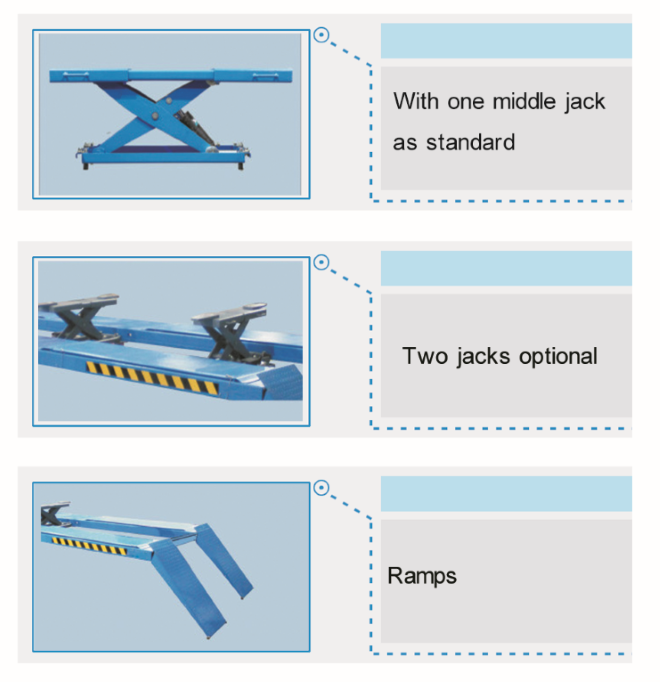

5. With second lifting jack, two jacks are optional.

6. Hydraulic lock and mechanical double-teeth safety claw device.

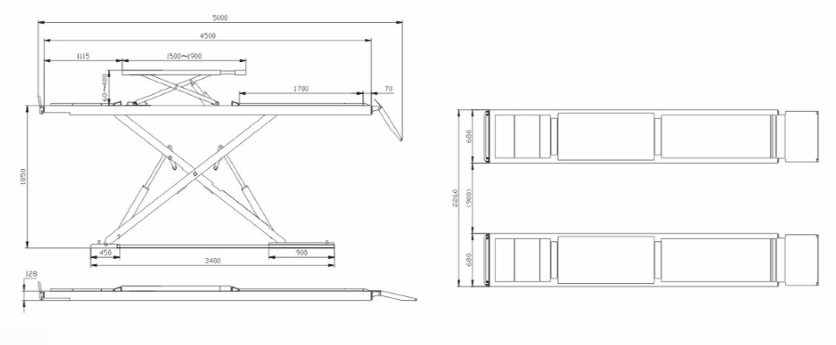

Specifications

First lifting capacity------------------------------4000kg

Secondary lifting capacity----------------------2500kg

First lifting height---------------------------------1700mm

Secondary lifting height-------------------------450mm

Machine length------------------------------------5500mm

Runway length------------------------------------4500mm

Runway width-------------------------------------670mm

Runway height-----------------------------------180mm

Lifting time-----------------------------------------55S

Air pressure---------------------------------------0.6-0.8Mpa

Power supply-------------------------------------110V~415V

Net weight-----------------------------------------2160Kg

9 units can be put into one 20ft container
