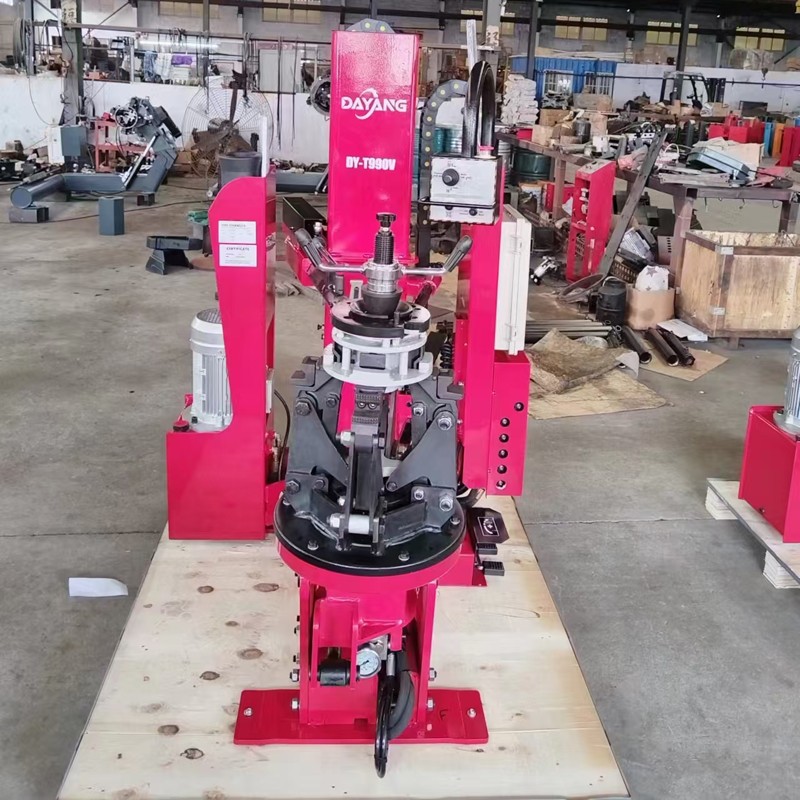

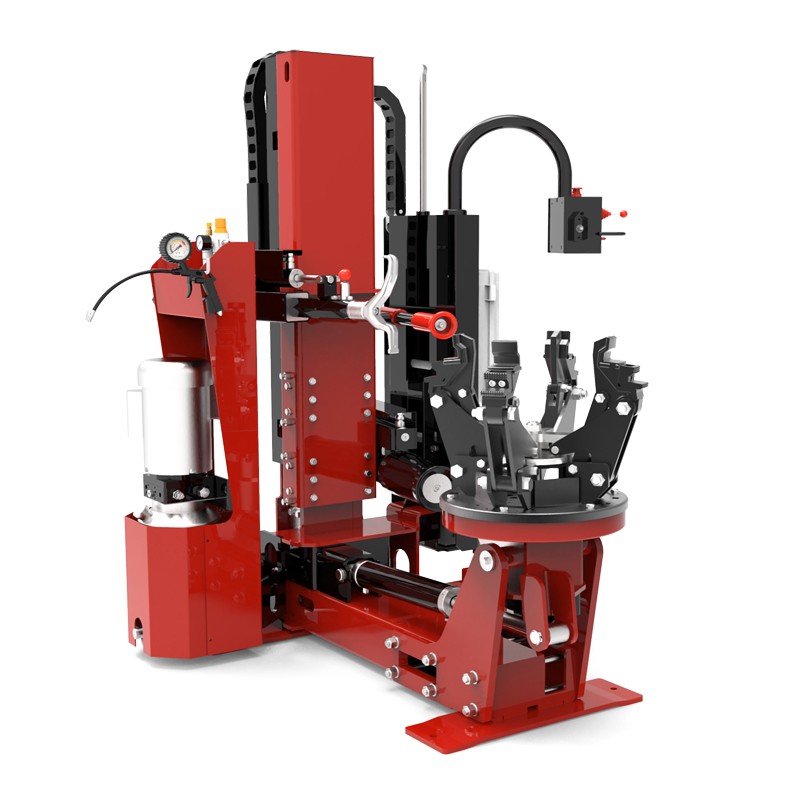

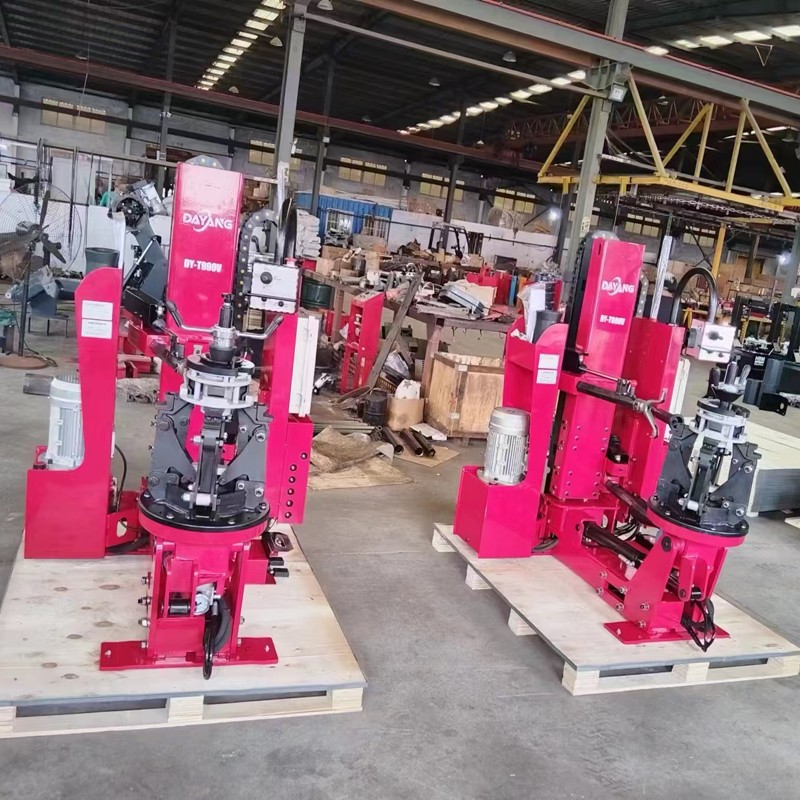

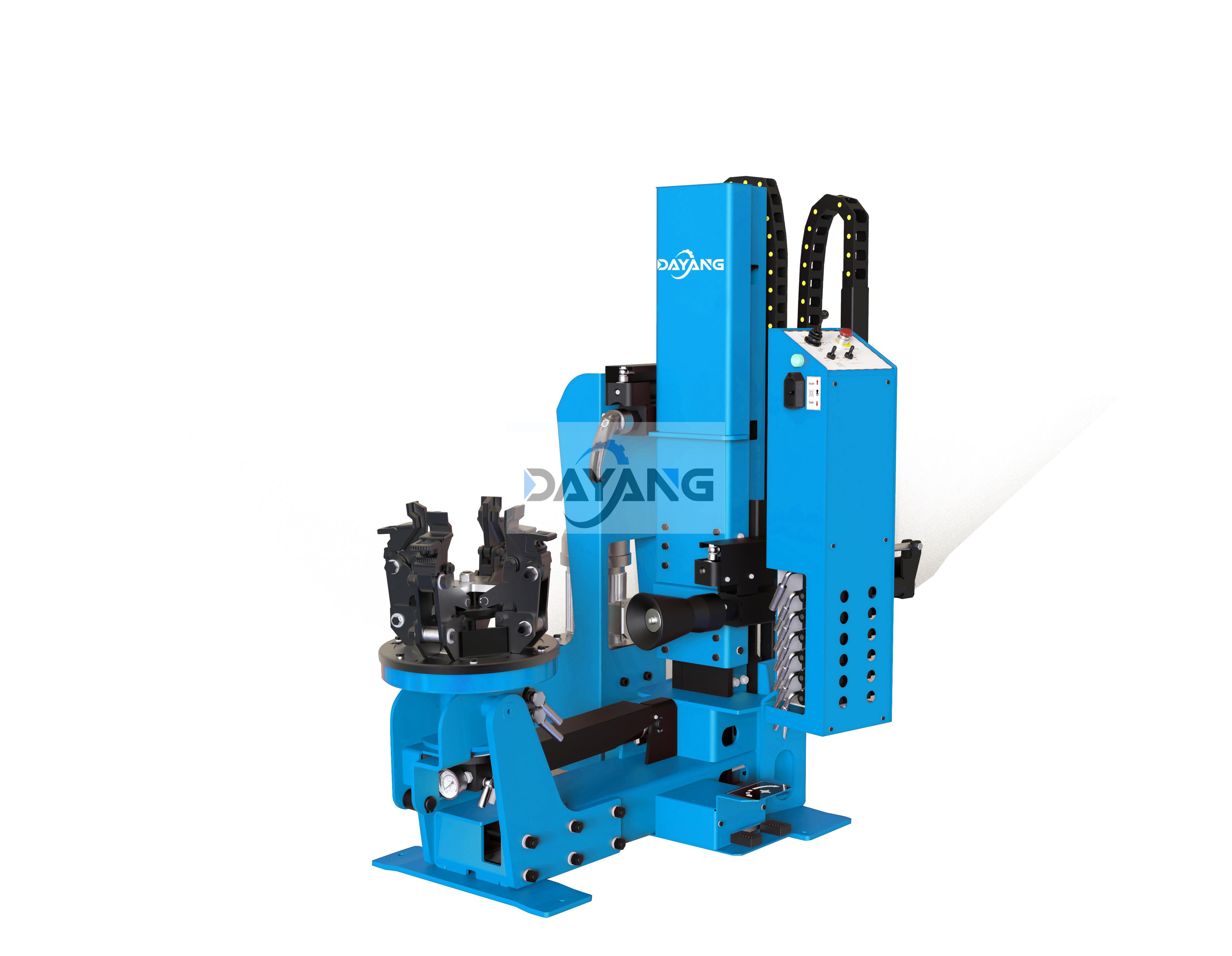

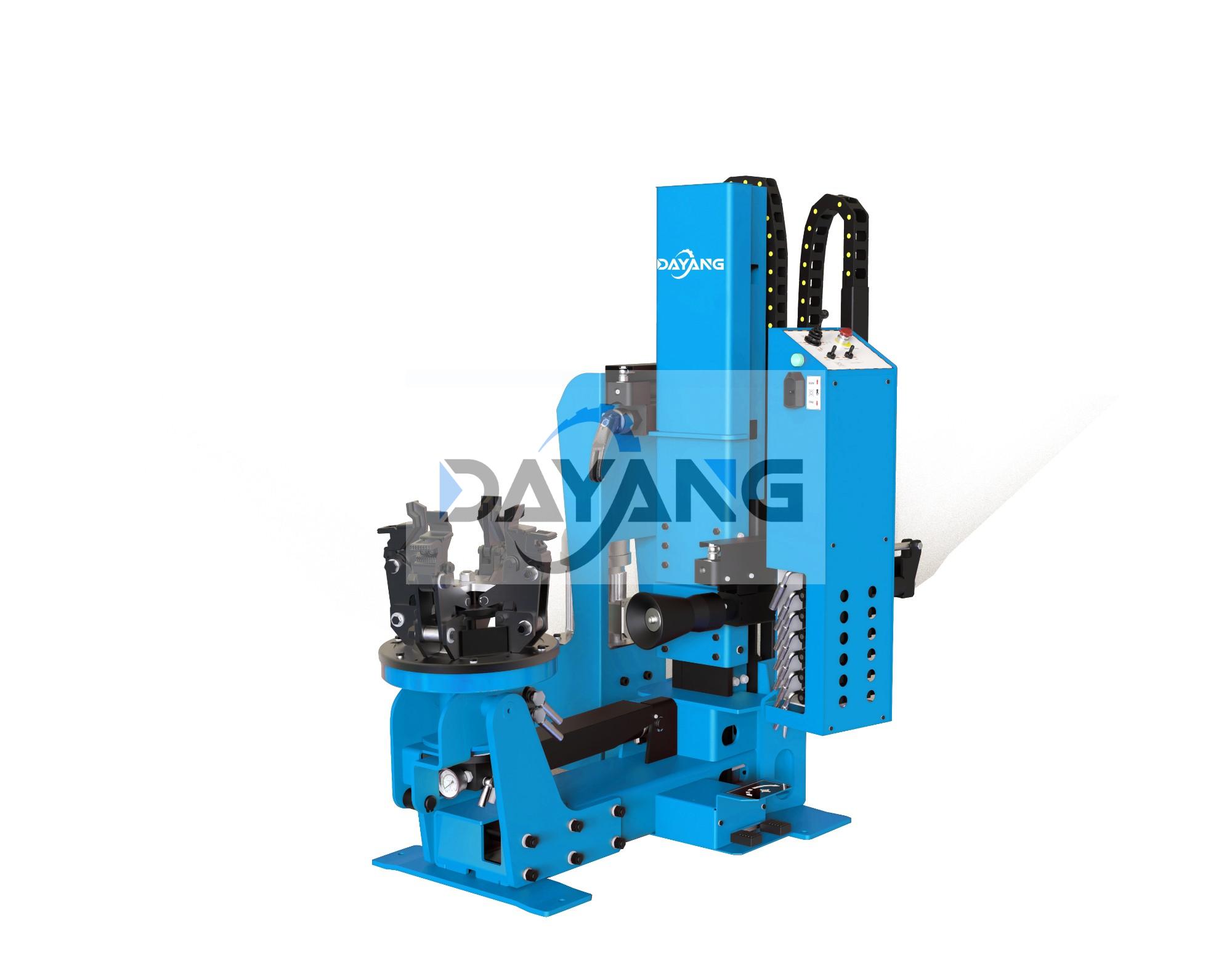

DY-T990V vertical truck and car tire change

Features

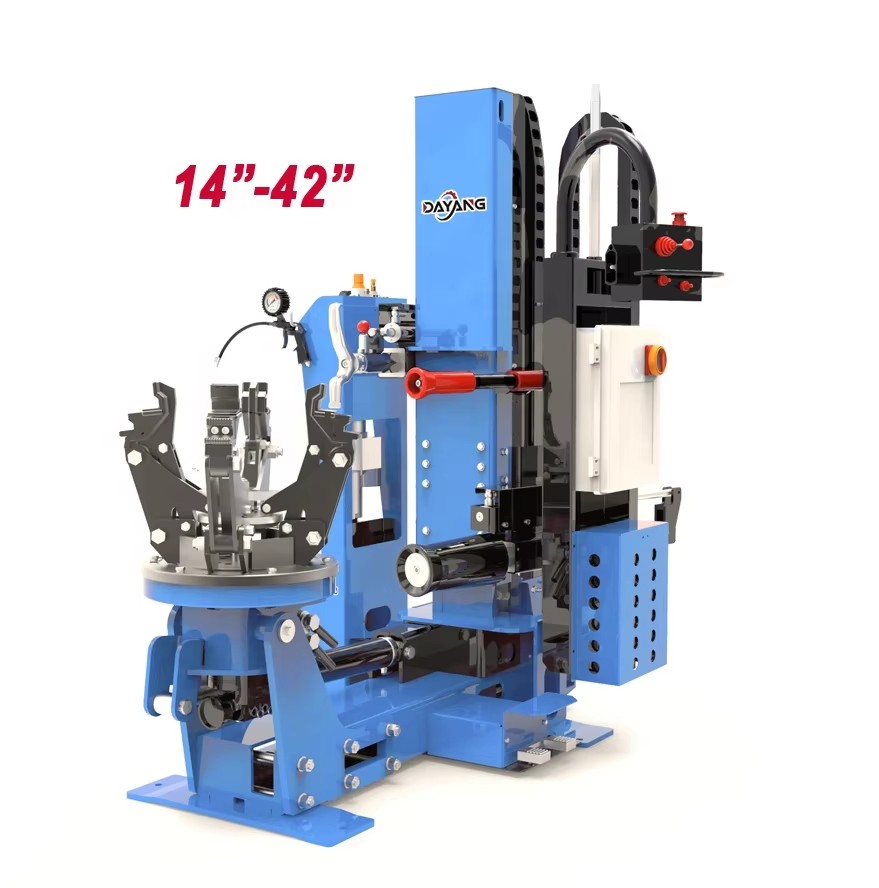

1.   Applicable for truck, bus and OTR tires rim diameter 14” -42”

2.   Operation on control panel is low-pressure and mobiled.

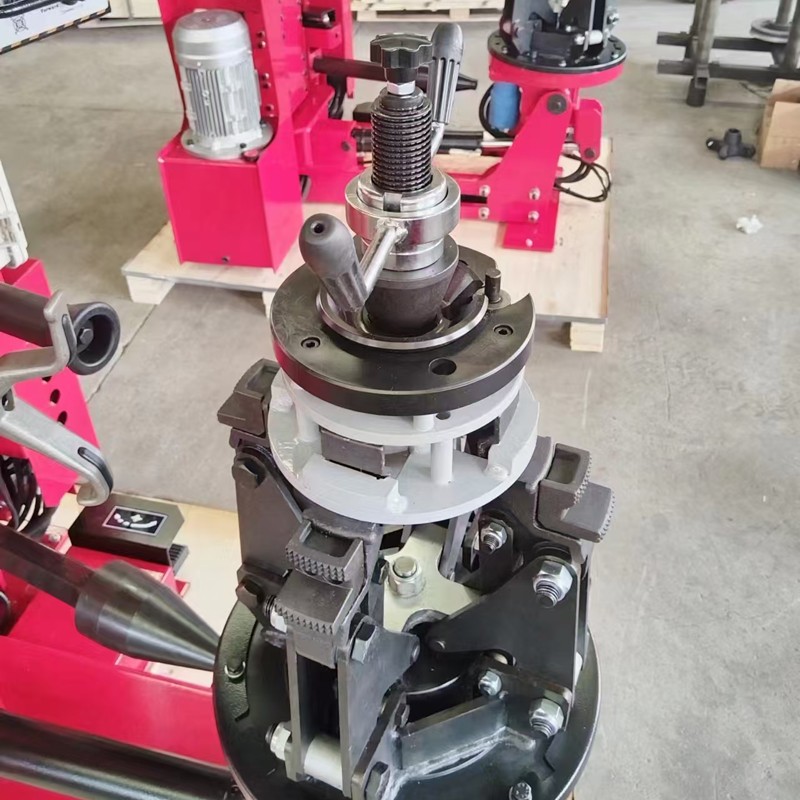

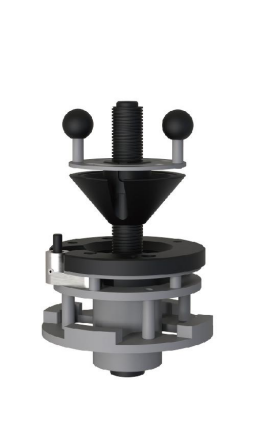

3.   The assembly arm is equipped with pendular assembly round plate and assembly hook.

Tool bracket lifting arm and gripper are controlled by hraulic system.

Specifications

Max. wheel diameter---------------60"(1500mm)

Handles wheels rim from---------14" to 42"

Max. wheel width-------------------30"(780mm)

Max. wheel weight-----------------500kg

Hydraulic pump motor------------3.0kw

air pressure--------------------------less than 130 bar

Net weight----------------------------560kg

Package size------------------------1350*1100*1750mm

8 units/20GP     16 units/40GP
