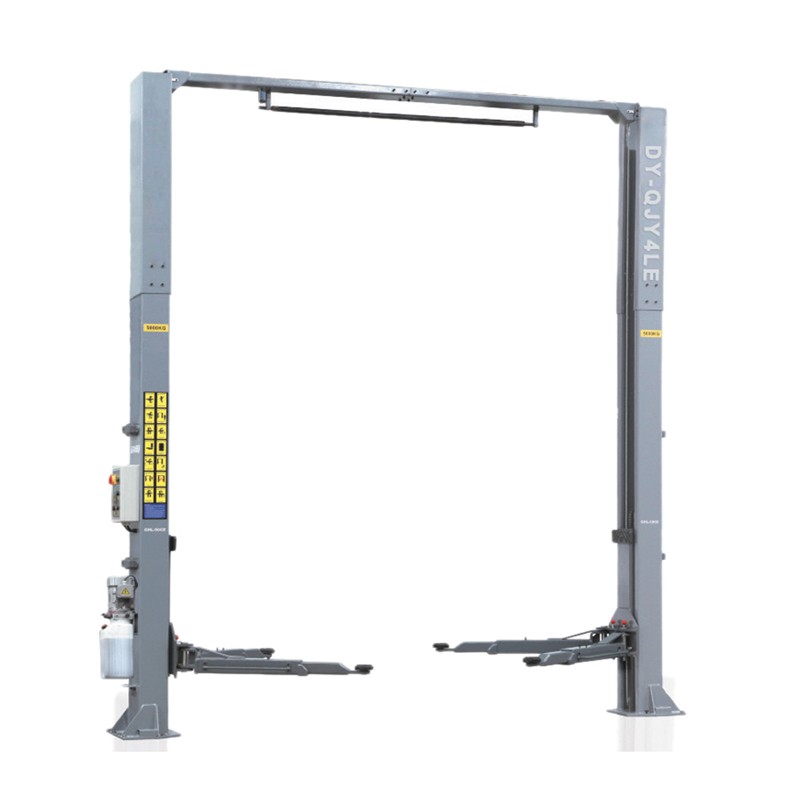

DY-QJY4LE Electric unlocking car hoist

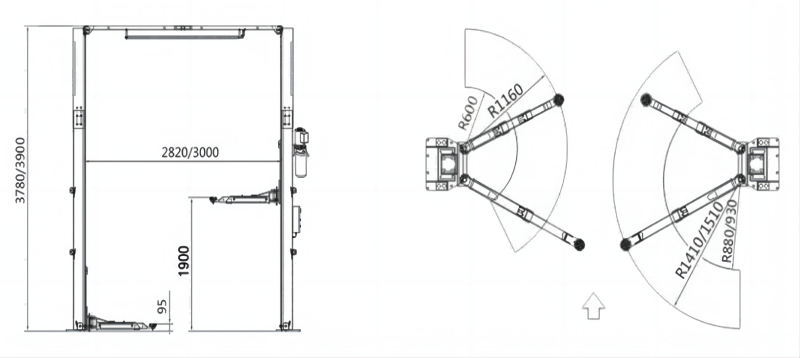

Technical Specification:
Lifting capacity-------------------4000kg/5000kg
Lifting height----------------------1900mm
Minimum height-------------------95mm
Lifting time------------------------ 55~60s
Overall height---------------------3780mm/3900mm
Overall width-----------------------3460mm/3640mm
Width between columns---------2820mm/3000mm
Motor power------------------------2.2kw/3.0kw
Power supply-----------------------110V~415V
Weight-------------------------------650kg/735kg

EMAIL

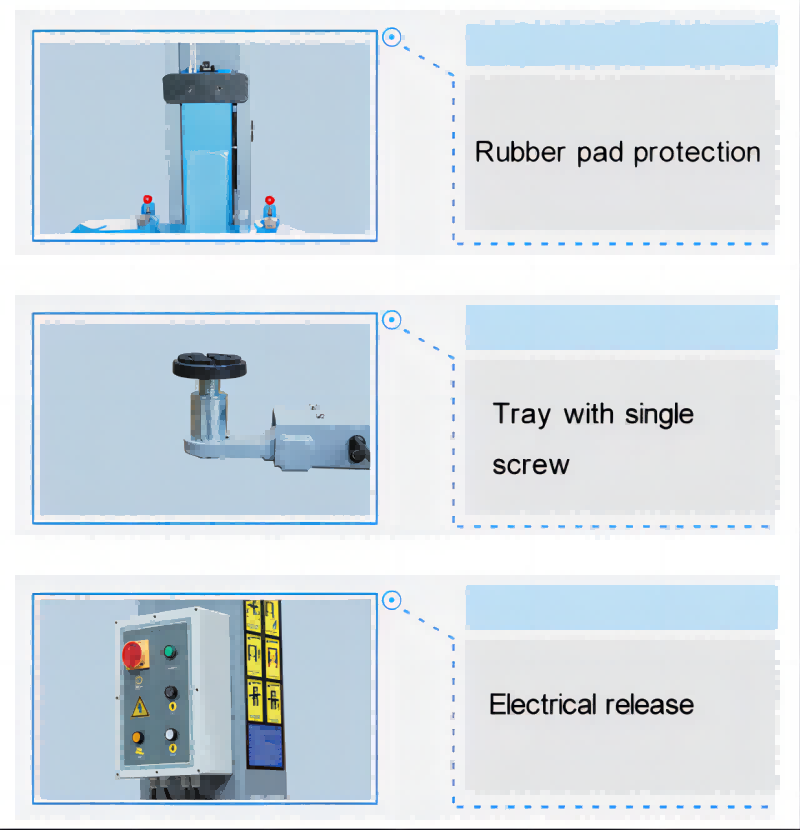

Main features

1. Clear floor design makes easy working under the vehicle.

2. Balance system of two cylinder, plate and wire rope chain.

3. Hydraulic pump and electrical release system.

4. With 24V limited switch, asymmetric column allows wider drive through clearance.

5. With toe protection.

6. Hydraulic pressure pre-setting prevents from overload lifting.


Specification:

ModelDY-QJY4LE/DY-QJY5LE

Lifting capacity

4000kg/5000kg

Lifting height

1900mm

Minimum height

95mm

Lifting time

55s-60s

Overall height

3780mm/3900mm

Overall width

3460mm/3640mm

Width between columns

2820mm/3000mm

Motor power

2.2kw/3.0kw

Weight

650kg/735kg

Power supply

110V~415V

24 units can be put into one 20ft container
