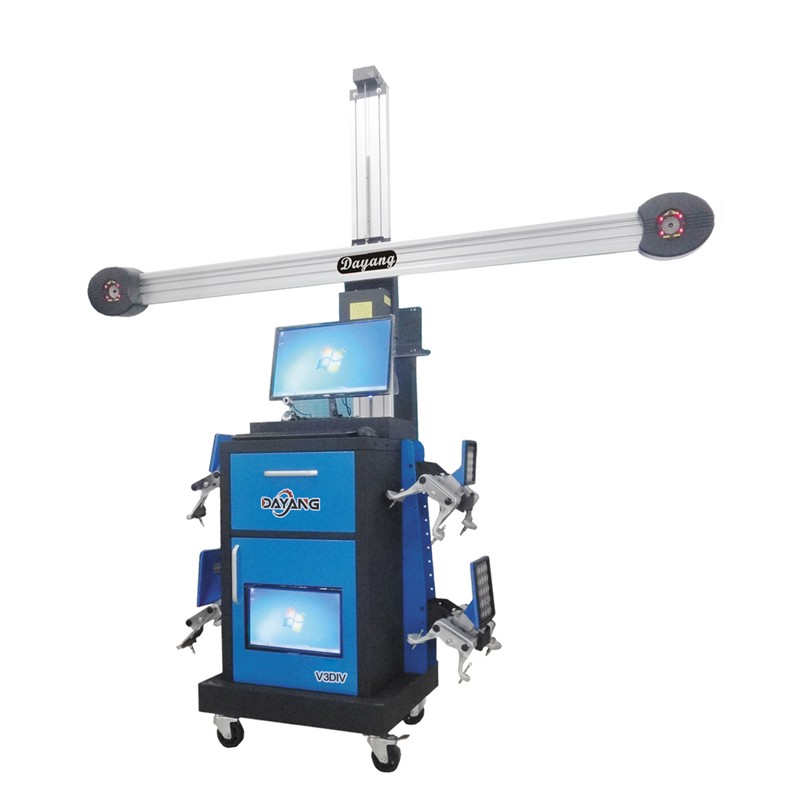

DY-V3DIV Car Wheel Aligment Automatic up & down

Specifications
Item ----------------- Accuracy -------------- Range
Display Accuracy -------- 1’/ 0.01° /0.1mm
Total toe ------------- ±0.02° ---------------- ±30°
Sub Toe ------------- ±0.02° ---------------- ±30°
Camber ------------- ±0.02°---------------- ±20°
Kingpin caster ------ ±0.03° ---------------- ±25°
Front set-back ----- ±0.01° ---------------- ±10°
Rear set-bac --------±0.01° ---------------- ±10°

EMAIL



 Features



1. Windows 10 English legal system including many languages.

2. No electronic components and no battery can reduce failure greatly.

3. High accuracy cameras can detect overlong and overwide cars, cameras can work at any environment condition.

4. Shortest installation distance, the distance from cameras to front wheels can be 1.7 meters long.




Specifications





Item   Accuracy  Range
Display Accuracy  1’/ 0.01° /0.1mm
Total toe ±0.02°  ±30°
Sub Toe  ±0.02°  ±30°
Camber  ±0.02° ±20°
Kingpin caster ±0.03°±25°
Front set-back   ±0.01° ±10°
Rear set-bac ±0.01° ±10°
Thrust angle±0.01° ±10°
SAI±0.03°±25°
