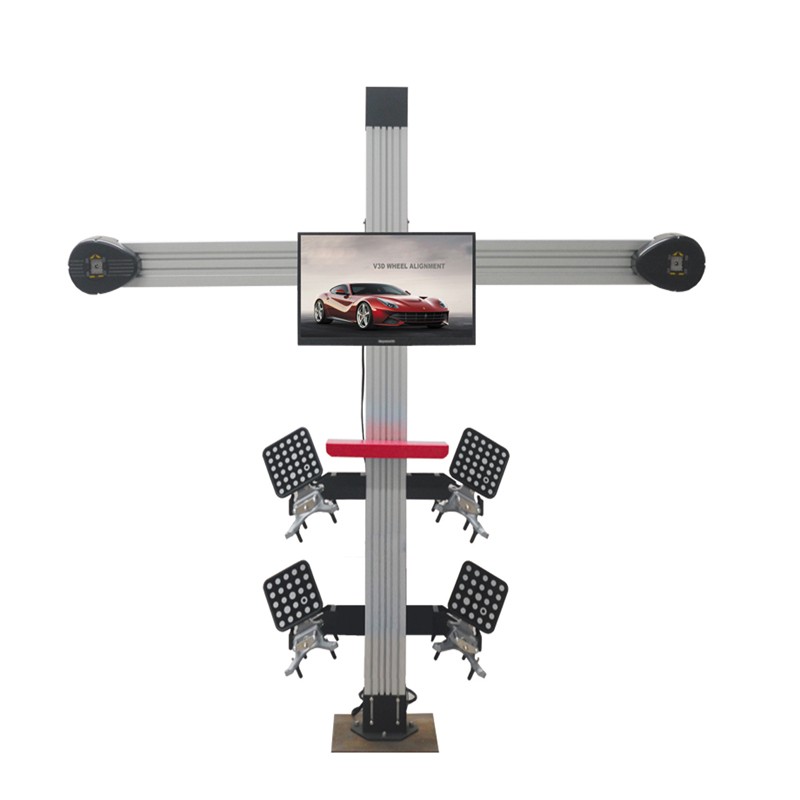

DY-V3B 3d Wheel Alignment Machine

Specifications:
Item ------------------- Accuracy ------Range
Toe ------------------ ±0.02° ---------- ±30°
Camber -------------- ±0.02° ---------- ±20°
Kingpin caster ---- ±0.03° ---------- ±25°
SAI ------------------ ±0.03° ---------- ±25°
Set-back---------------±0.01° ---------- ±10°
Thrust angle----------±0.01° ---------- ±10°

EMAIL


Features

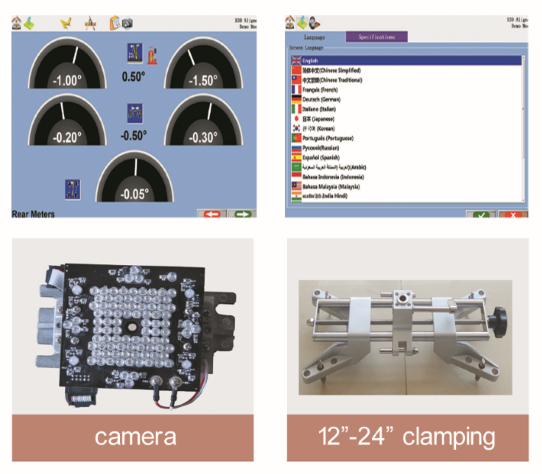

1. High accuracy dynamic industrial cameras, quick reception of image information from targets.

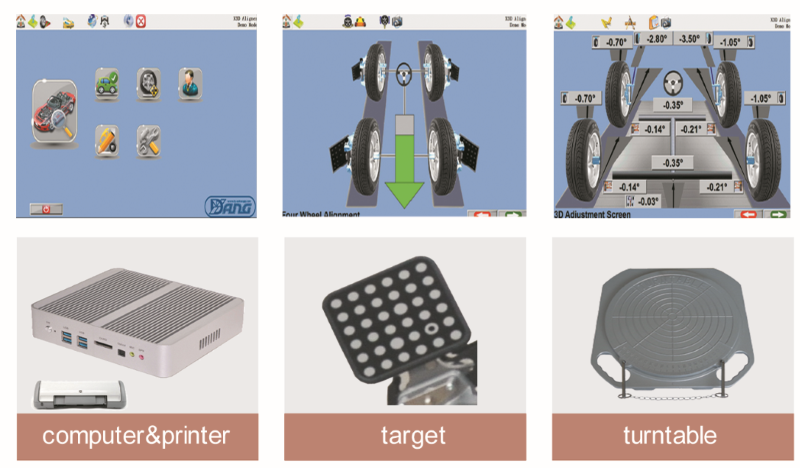

2. Four targets only transmit images, no electronic components and no connection cables can reduce failure greatly.

3. Finish the offset compensation and measurement by one time lifting or pushing cars.

4. One-off calibration in factory, the machine can be used directly after assembly.




Specifications



ltemAccuracyRange
Toe±0.02°±30°
Camber±0.02°±20°
Kingpin caster±0.03°±25°
SAI±0.03°±25°
Set-back±0.01°±10°
Thrust angle±0.01°±10°
