DY-4.5YYJ

Features

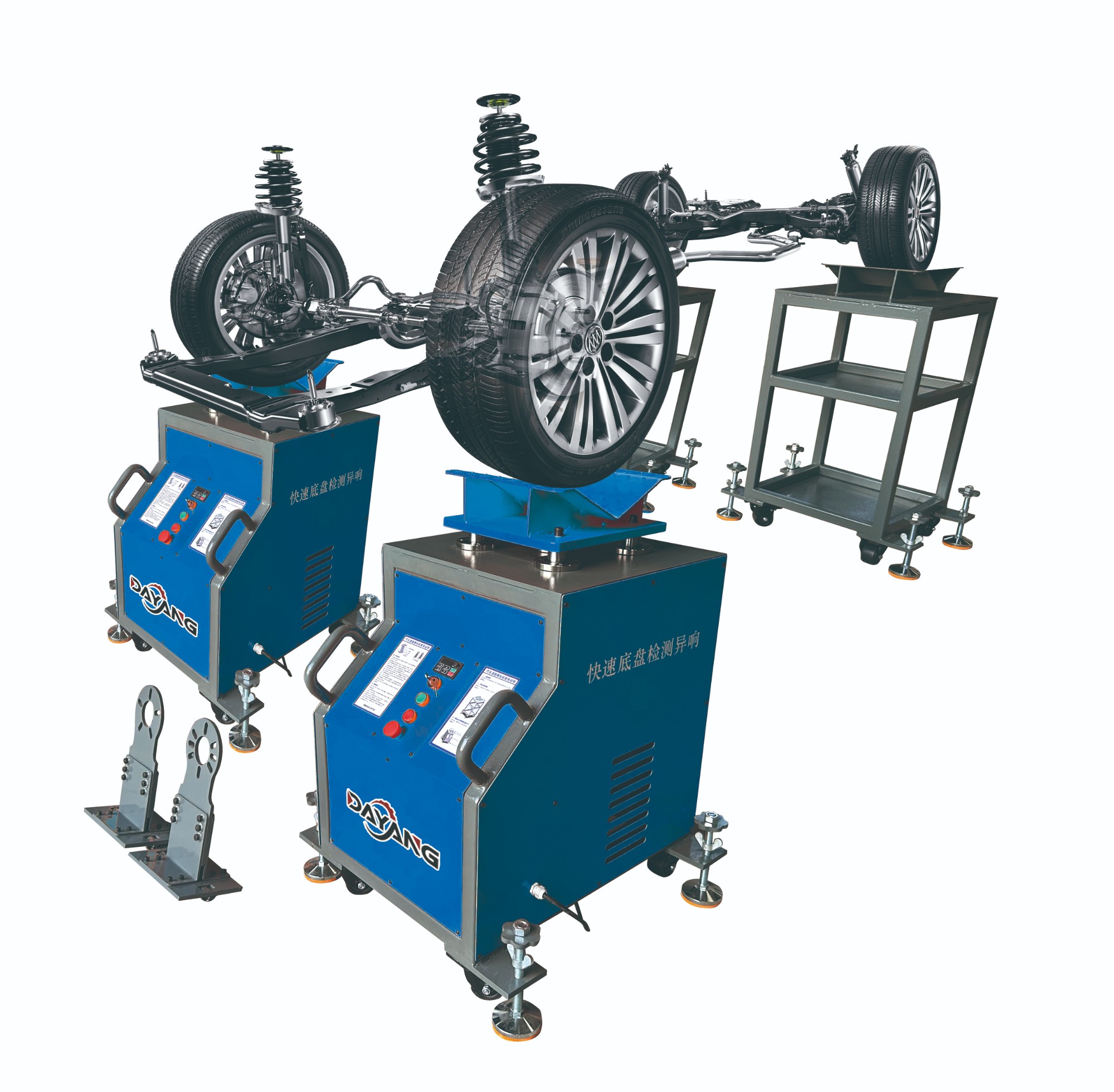

1.it can effectively and quickly detect the abnormal sound and vibration of cars on a kinds of bumpy roads.

2. Quickly improve the output value of chassis business, good visual effect. Differentiated professional testing, to attract more customers.

3. Maximum load capacity4000KG, Adjustable speed can simulate various bumps at different frequencies.

4. All-round reinforced support pad design, more stable and safe.

SPECIFICATIONS

Maximum bearing weight lifting-------------------4500KG

Max. Lifting height------------------------------------1100mm

Working voltage-------------------------------------- AC 380V/220V

Motor Power------------------------------------------ 2.2KW

Motion frequency-------------------------------------200 times/min

Working temperature------------------------------ -30°~ 50°

Packing weight---------------------------------------820kg (Four packages)

Equipment configuration--------------------------two main workers,two support

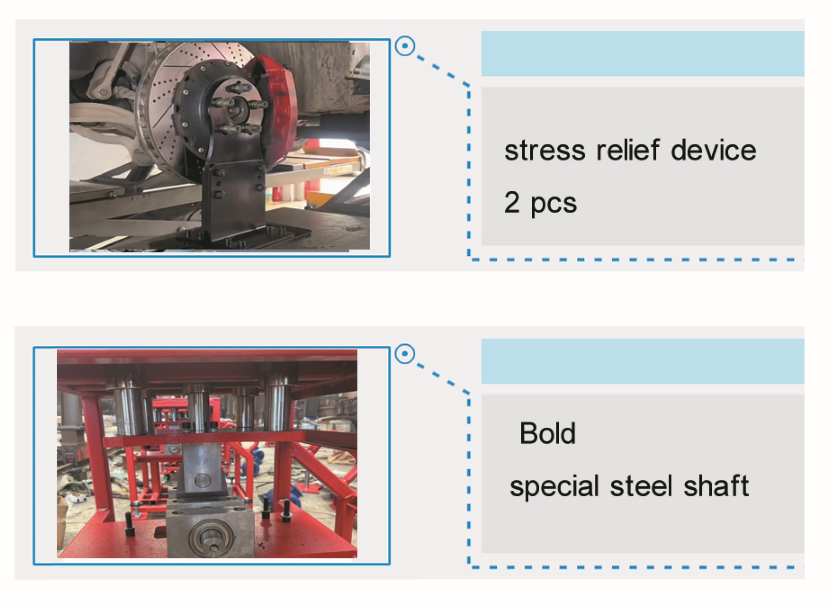

frames-------------------------------------------------two stress relief device

Main worker packing size------------------------800*830*1130mm

support frame packing size----------------------830*600*1130mm

         10 units/20GP             20 units/40GP
