DY-SG360 new touchless car wash machine

specification:
Three-phase electric-----------------380V/56Kw
Power supply requirement ---------380V/22Kw/50Hz/60Hz
Installation requirements -----------8900*4000*3400mm
Maximum car wash size-------------5600*2950*2250
Track Length --------------------------8500mm
Complete machine mass ----------3500kg/13.8m
Rinse pressure------------------------90-120kg
Car wash time -------Quick wash for 2 min / essence for 6 min
Fluid consumption amount --------Metering pump / 20-50 ml
Power consumption (degree)-------Metering pump / 20-50 ml
water consumption (L)---------------100-200L

EMAIL

Features

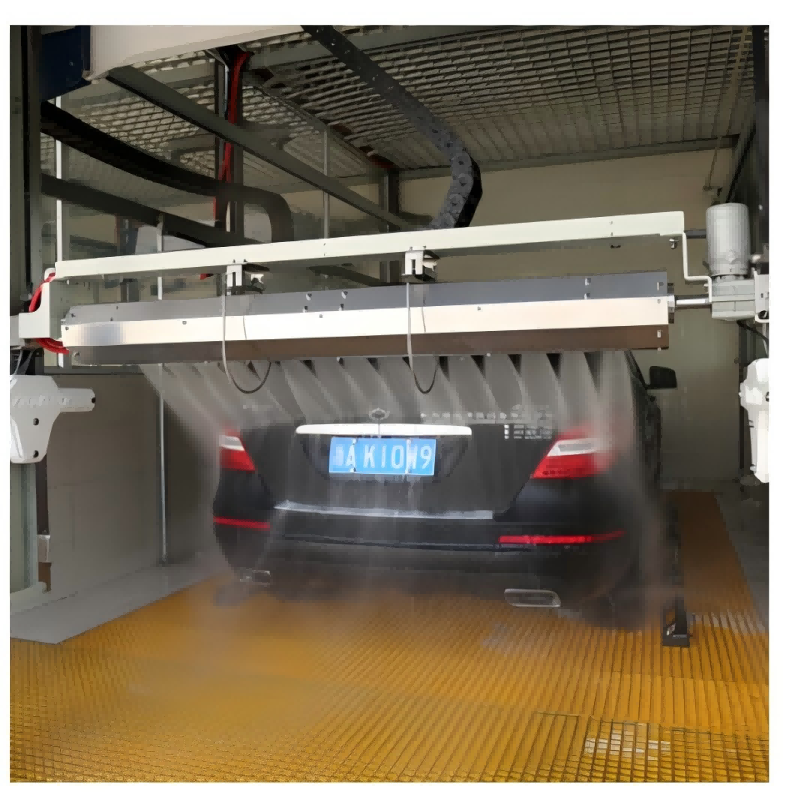

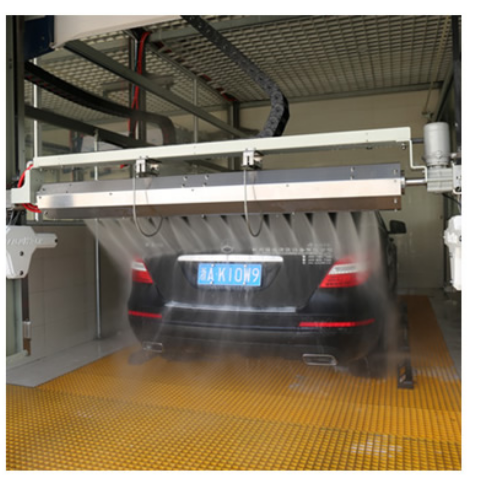

1、In several stages two presoak chemicals are applied to the vehicle to soften up any crusted dirt, with our contouring application system the chemicals will be evenly   applied to all areas of the car. It will automatically detect and identify all types of vehicles, contour following the car body at accurately 35cm distance, water is   alternately supplied from horizontal arm or from vertical arm, up to 100 bar high pressure water with 15 nozzles could easily flushing away the dirt. Horizontal arm   could  go to really bottom and makes perfect cleaning at vehicle head and tail.

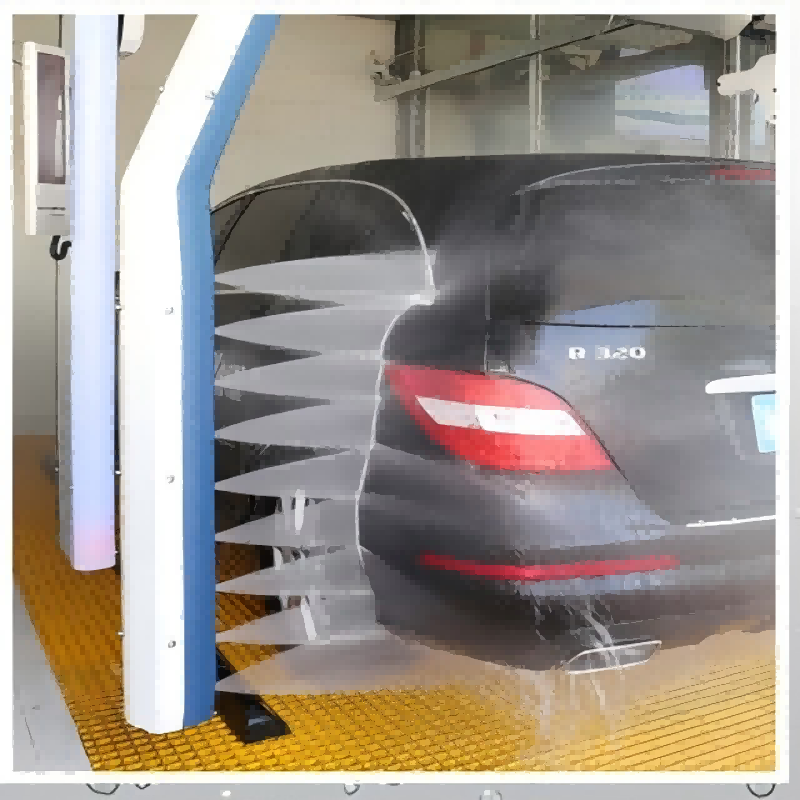

2、German P+F ultrasonic sensor detection system ensure 35 cm precision washing distance on both sides, water is alternately supplied from horizontal arm or from     vertical arm, up to 100bar flushing pressure with 9 powerful USA made jets at both sides, can effectively cleans the sides and sill areas of the vehicle.

3、Final rinse with reverse osmosis water can perform a spot free car wash, the crystal coating wax can be completely absorbed on the surface of the car body, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.


specification

Three-phase electric / complete machine power-----------380V/56Kw

Power supply requirement (kw)--------------------------------380V/22Kw/50Hz/60Hz

Installation requirements (mm)---------------------------------8900*4000*3400

Maximum car wash size-----------------------------------------5600*2950*2250

Track Length (mm)------------------------------------------------8500mm

Complete machine mass / volume----------------------------3500kg/13.8m

Fame-shaped high pressure flushing-------------------------Fame-shaped high pressure flushing

Rinse pressure-----------------------------------------------------90-120kg

Car wash time (min)----------------------------------------------Quick wash for 2 min / essence for 6 min

Fluid consumption amount (ml)--------------------------------Metering pump / 20-50 ml

Power consumption (degree)-----------------------------------Metering pump / 20-50 ml

water consumption (L)-------------------------------------------100-200L




No previous NEXT:DY-4.5YYJ
