DY-T910 manual tire changer

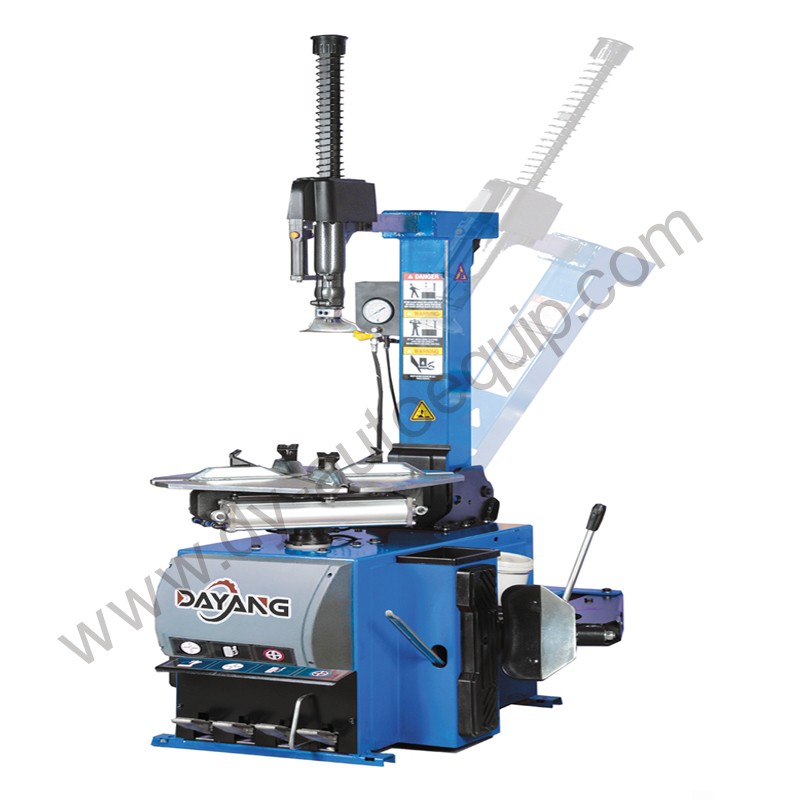

 1. Pictures of tire changer

2. Main features of tire changer

1.Clamping jaw made by American 8640 alloy steel, anti-abrasion and anti-rusting.

2. Integrated demounting and mounting.

3. Top locking and swinging arm structure, S41 six-axle shaft.

4. With bigger strong bead breaker, can be used for wide flat tires.

5. Whole design and material is Italian style, strong and reliable.

6. Reserved a hole for auxiliary mechanical arm, be convenient to add it.

3. Specifications

Motor power--------------- 0.75/1.1KW/0.55KW

Rim Clamping outside-----------10"-22"

Rim Clamping inside-------------12"-24"

Max. tire diameter------------- 41”(1040mm)

Max. tire width----------------- 14”(360mm)

Rotating speed ---------------6r/min

Working pressure------------8-10bar

Bead breaker force----------2500kg

Power supply-----------------100V-415V,50/60HZ

N.W-----------------------------230kg

4. Factory
